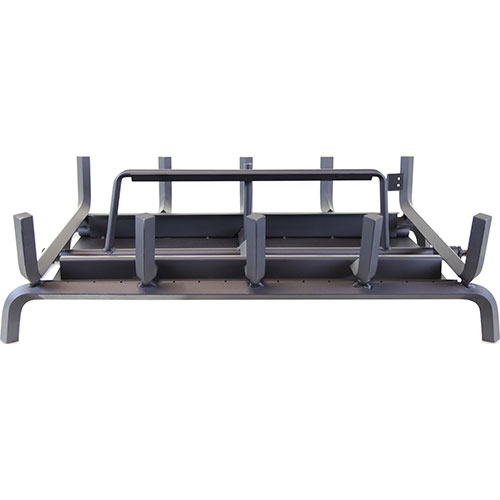

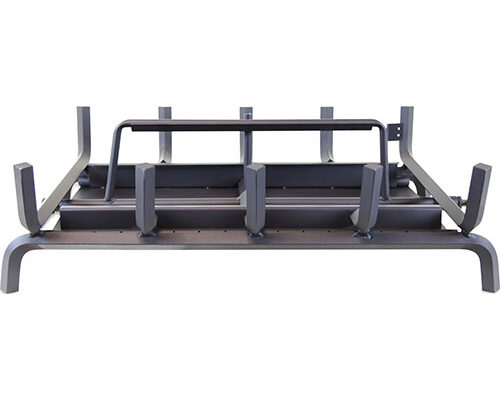

Grand Canyon 48" Jumbo See-Through Burner System - Natural Gas
Overview
Command a commanding flame from both sides with the Grand Canyon 48" Jumbo See-Through Burner System. Engineered for open, double-sided fireplace enclosures, the Jumbo platform wraps thick 1-inch bar stock around an elevated back burner to drive Grand Canyon's signature towering, full-bodied flame, indoors or out.
Each system arrives as a complete, fully-welded burner package, ready to pair with Grand Canyon's Jumbo log sets (logs sold separately). Configured for Natural Gas in a match-lit base setup, it is field-convertible to liquid propane and accepts Grand Canyon valve kits and control systems for added convenience. Built and backed in the USA.
Specifications
- Model: JUMBOBRNR-ST48
- Burner Size: 48 in (Jumbo See-Through)
- Configuration: See-Through / Double-Sided
- BTU Output: Up to 195,000 BTU
- Fuel Type: Natural Gas (field-convertible to LP)
- Control Type: Match-Lit (valve kits & control systems available separately)
- Venting: Vented — for indoor vented fireplace enclosures or outdoor use
- Material: 304 Stainless Steel chassis with 1" bar stock and elevated back burner
- Piping: 3/4" piping & 1/2" bar stock, gas inlet configurable left or right
- Depth: Approx. 21–24 in (Jumbo platform)
- Design: Fully welded, sandless system with concealed pilot mounting brackets
- Certification: ANSI certified with control systems
- Included: Burner system, metal bar stock & burner pipes, lava rock, black embers, fittings, flex line, damper clamp
- Logs: Not included — pair with a Grand Canyon Jumbo log set
- Warranty: Lifetime warranty against breakage and defects (when installed indoors)
- Origin: Made in the USA
ExceptionalFire is an authorized Grand Canyon Gas Logs dealer.
Specifications
| Vendor | Grand Canyon |
|---|---|
| Title | Default Title |
| Type | Gas Logs |
| SKU | JUMBOBRNR-ST48 |
Shipping & Returns
Free shipping across the contiguous US. Ships in 3-10 days from our facility.
All shipments are insured and tracked. You'll receive a tracking number via email within 24 hours of dispatch.
30-day returns on stock items in original condition. Free return shipping if the item arrives damaged or doesn't match the listing.
Warranty
This product is backed by our 5-year limited warranty against manufacturing defects in materials and workmanship.
Warranty covers structural integrity, finish, and hardware. Normal wear, damage from improper installation, and modifications void coverage.
To file a claim, email warranty@exceptionalfire.com with your order number and photos of the issue.
What Our Customers Say
Top It Off With a Mantel
SaleClassic Non-Combustible Concrete Mantel Shelves | Modern Fireplace Upgrade
SaleNon-Combustible Concrete Mantel Shelves By Design Specialties - Banded
SaleStandard Non-Combustible Steel Mantel Shelves | 12 Finishes
SaleModern Non-Combustible Concrete Mantel Shelves | Design Specialties
SaleFlat Sawn Non-Combustible Concrete Mantel Shelf Pale Honey Finish
Tobacco Barn Non-Combustible Concrete Mantel Shelf Pale Honey Finish
SaleFlat Sawn Non-Combustible Concrete Mantel Shelf Maduro Finish
SaleChiseled Concrete Mantel Shelves | Design Specialties Non-Combustible
Grist Mill Non-Combustible Concrete Mantel Shelf Pale Honey Finish
Custom Metal Floating Mantel Shelf | Non-Combustible White Oak
Custom Metal Floating Mantel Shelf: Non-Combustible, Wood Grain Walnut, Any Size
SaleNew River Weathered Beam Non-Combustible Mantel Shelf FIELDSTONE Finish
Ardmore Flat Black Masonry Fireplace Door | Standard
Rainbow Fireplace Glass Doors | Custom Prefab Fit
Stiletto Masonry & Prefab Fireplace Glass Doors | Custom Made
Brookfield - Masonry & Prefab Fireplace Glass Doors | Custom
Frequently asked questions
Vented vs. ventless gas logs — which is right for me?
Vented gas logs require a working chimney/flue (open damper during use). They produce a more realistic, taller flame and expel combustion byproducts outdoors. Ventless (vent-free) gas logs burn cleaner so they don't require a flue — but they release combustion moisture and trace byproducts into the room. Vented = more realistic look + fully outdoor exhaust. Ventless = higher heat efficiency + flexible install but check local codes (some jurisdictions restrict ventless).
Are ventless gas logs safe?
Ventless gas logs sold in the US must include an oxygen depletion sensor (ODS) by design — the unit shuts off automatically if room oxygen drops below safe levels. Most also include built-in carbon monoxide protections. To use safely: install a CO detector in the room, follow the BTU sizing limits for your room volume, crack a window if running for extended periods, and don't run continuously for more than the manufacturer's stated maximum (typically 4 hours). Some states and municipalities do not permit ventless installation — check your local code.
Can I use gas logs in my wood-burning fireplace?
Yes — vented gas logs are designed to drop into a working masonry or pre-fab wood-burning fireplace. The chimney/flue must be inspected and verified working (open damper during use). You'll also need a gas line run to the firebox if one isn't already there. Always have a licensed gas plumber install the line and have a hearth professional install and test the burner.
How do I light gas logs?
Most modern gas log sets use a millivolt valve with a wall switch or remote, or a match-light system where you ignite a pilot manually with a match. Check your specific set's manual. For first lighting after install, follow the manufacturer's burn-in procedure (typically 4–6 hours total of staged burns) to cure the logs and burner coatings before regular use.
Free shipping and warranty?
Free freight shipping on all orders, contiguous US. Most gas log sets carry a 5-year warranty on the burner and a limited lifetime warranty on the ceramic logs against defects (warranty terms vary by manufacturer — full details on each product page). 30-day return window on unused, uninstalled gas log sets.
