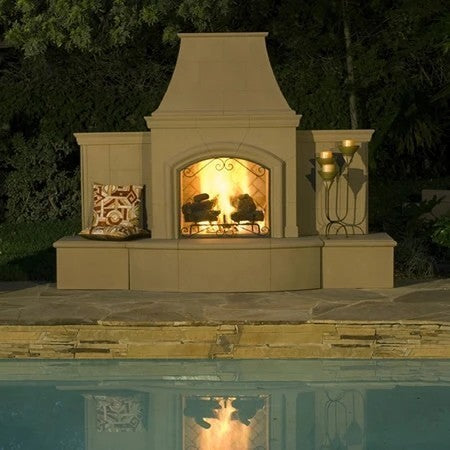

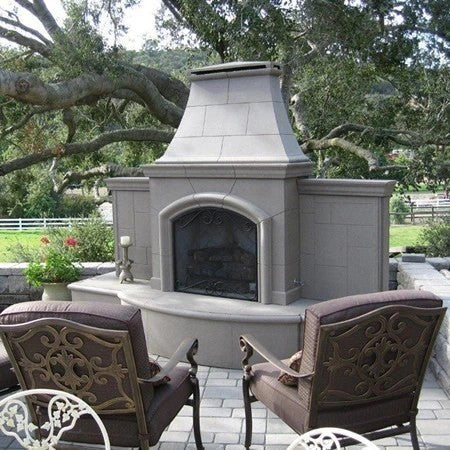

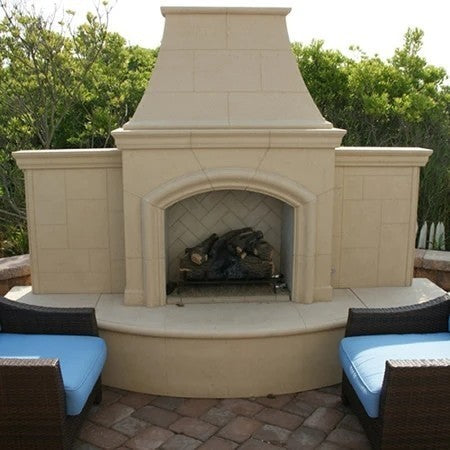

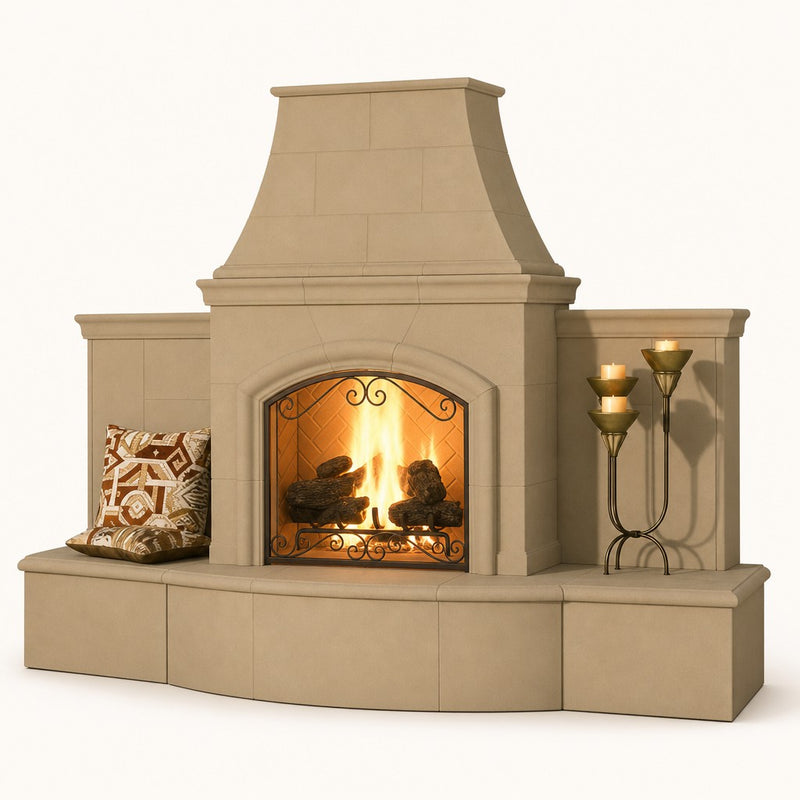

American Fyre Designs Grand Phoenix 113" Vented Outdoor Gas Fireplace
Overview
The American Fyre Designs Grand Phoenix is a full-sized, classic outdoor gas fireplace that anchors any patio, courtyard, or backyard living space with timeless architecture and a commanding 606 sq. in. viewing area. An elevated take on the original Phoenix, the Grand Phoenix adds herringbone firebox liners and a pair of integrated wall extension panels for a wider, more dramatic presence.
Hand-finished in glass-fiber reinforced concrete (GFRC), it resists high heat and weather without cracking, and ships in pre-cast sections for on-site assembly. This is the vented natural gas configuration with the standard Extended Bullnose Hearth, key valve on the right, and a choice of White Aspen or Café Blanco finish.
Specifications
- Model: 818-05 Grand Phoenix
- Overall Size: 113"W x 36"D x 87"H
- Viewing Area: 606 sq. in.
- Weight: Approx. 1,400 lbs (12-piece assembly)
- Material: Glass-Fiber Reinforced Concrete (GFRC)
- Fuel Type: Natural Gas
- Venting: Vented
- Ignition: Key Valve (manual), located on the right
- Gas Outlet: Underneath (RUC) or Out the Back (RBC)
- Hearth: Extended Bullnose Hearth (standard, no recess)
- Finish Options: White Aspen, Café Blanco
- Compatible Log Sets: Up to 20"
- Certification: ANSI Standards
- Warranty: 3-Year limited on GFRC components; 1-Year on burners, valves, and electronic components
ExceptionalFire is an authorized American Fyre Designs dealer. Each fireplace is built to order.
Specifications
| Brand | American Fyre Design |
|---|---|
| Model | 818-05-N-WA-RUC |
| Fireplace type | Vented |
| Configuration | Front-facing (single-sided) |
| Installation | Outdoor only |
| Nominal size | 113" |
| Fuel | Natural gas |
Manufacturer Documents
Official documents from American Fyre Designs. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Free shipping across the contiguous US. Ships in 1-2 weeks from our facility.
All shipments are insured and tracked. You'll receive a tracking number via email within 24 hours of dispatch.
30-day returns on stock items in original condition. Free return shipping if the item arrives damaged or doesn't match the listing.
Warranty
This product is backed by our 5-year limited warranty against manufacturing defects in materials and workmanship.
Warranty covers structural integrity, finish, and hardware. Normal wear, damage from improper installation, and modifications void coverage.
To file a claim, email warranty@exceptionalfire.com with your order number and photos of the issue.
What Our Customers Say
Frequently Asked
Does this fireplace need a chimney?
No. This is an outdoor fireplace, so it vents to open air and needs no chimney or flue. It is certified to ANSI Z21.97/CSA 2.41 as an Outdoor Decorative Gas Appliance, which is a different listing from any indoor fireplace. What it does need is a permanent outdoor location with the clearances in its manual kept clear at all times.
Can I use this outdoor fireplace indoors, like in a garage or a screened porch?
No, and this one is absolute. Outdoor gas fireplaces are certified to a different standard from indoor units — ANSI Z21.97/CSA 2.41, "Outdoor Decorative Gas Appliance" — and the manufacturers say so directly. Montigo's manual reads: "This appliance shall be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building, garage, or any other enclosed area." American Fyre Designs uses the same language and adds recreational vehicles and boats. A covered patio may or may not count as enclosed; that is a question for your local inspector.
Can I install this myself?
Plan on a licensed professional for the gas work. In most jurisdictions connecting gas is permitted work that has to be done by a licensed gas fitter and signed off at a final inspection, and doing it yourself can void both the manufacturer warranty and your homeowner insurance. Manufacturers say the same thing — FireRock, for example, instructs installers to "consult with local building and zoning authorities regarding the need for proper permitting" before construction starts. Framing and finish work is often owner-supplied; the gas connection and the final inspection are not.
How do I know it will fit the space I have?
Work from the framed opening rather than the finished wall. Manufacturers publish a framing dimension and a minimum enclosure height, and both have to be right before the finish material goes on — Napoleon, for example, specifies a framing depth range and a minimum unobstructed enclosure height for its multi-view units. If you send us your rough opening we will check it against the manual for that model.
What else do I need to buy to make this work?
A gas supply line run to the location by a licensed gas fitter, and the correct fuel type — natural gas and propane are not interchangeable without the matching conversion kit. Most outdoor fireplaces ship without a log set or media, so confirm what is included. Any log set you add must itself be listed for outdoor use.
