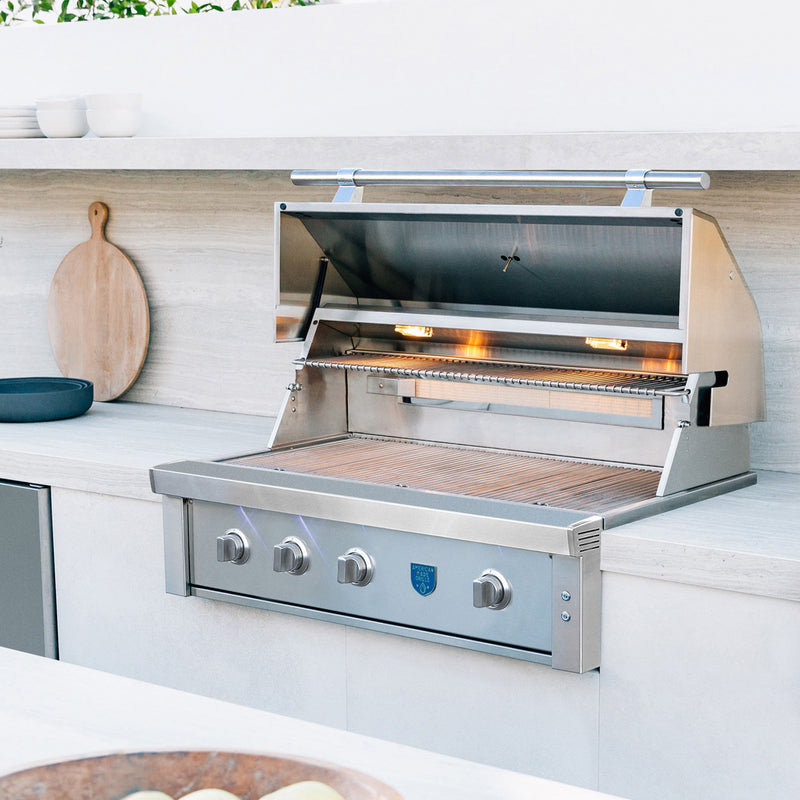

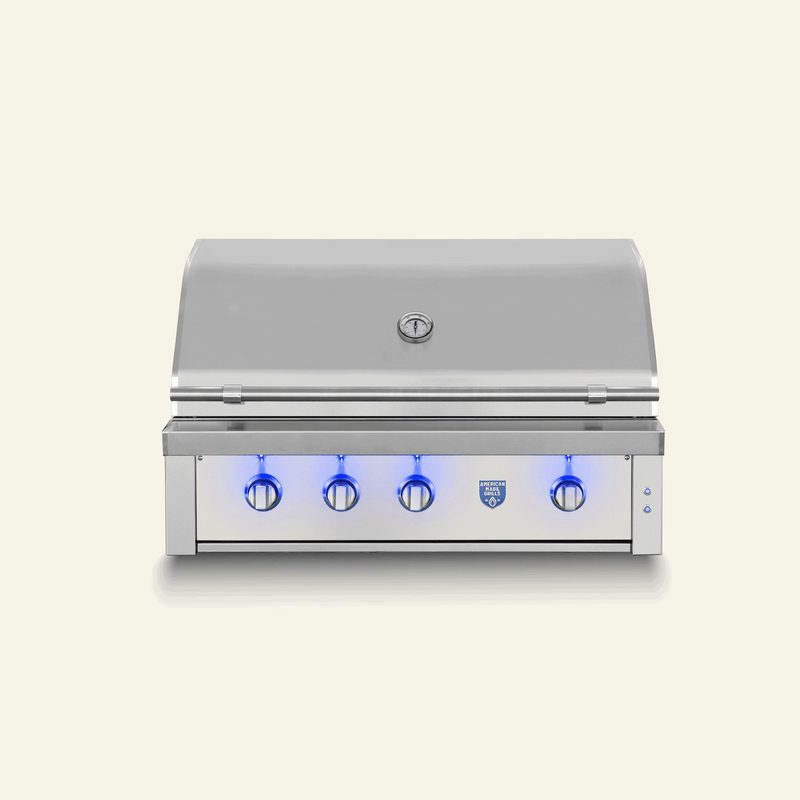

American Made Grills Estate 42-Inch Built-In Gas Grill
Overview
Bring rotisserie cooking, gas grilling and a dedicated smoker tray into one outdoor cooking station. The Estate 42-inch pairs red brass burners with a spring-assisted hood and a stainless steel finish.
Built around the way you cook

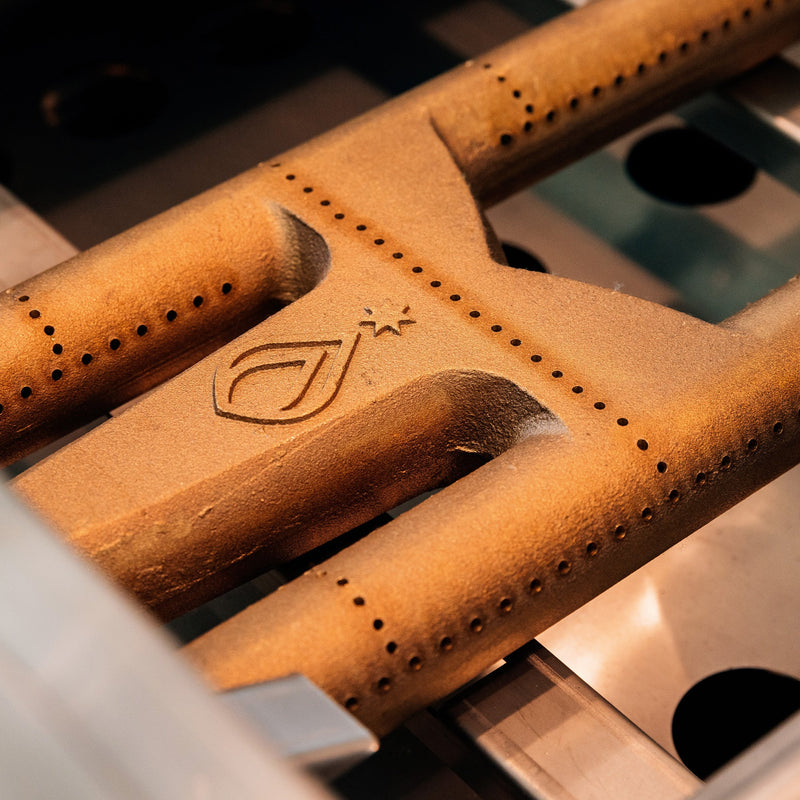

- 26,000 BTU red brass main burners provide individually controlled heat.

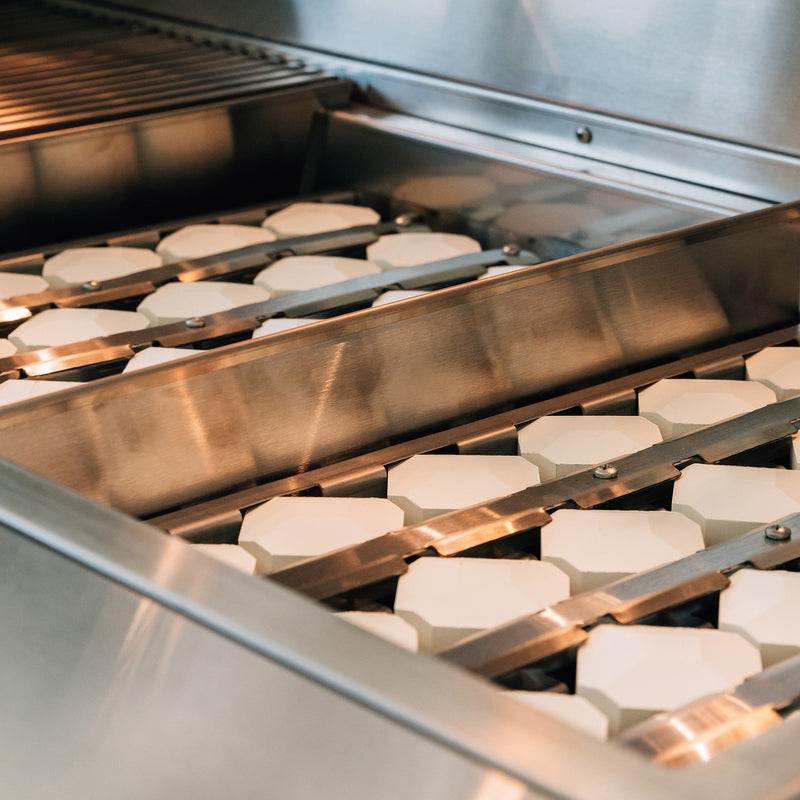

- A briquette system distributes heat below the cooking grates.

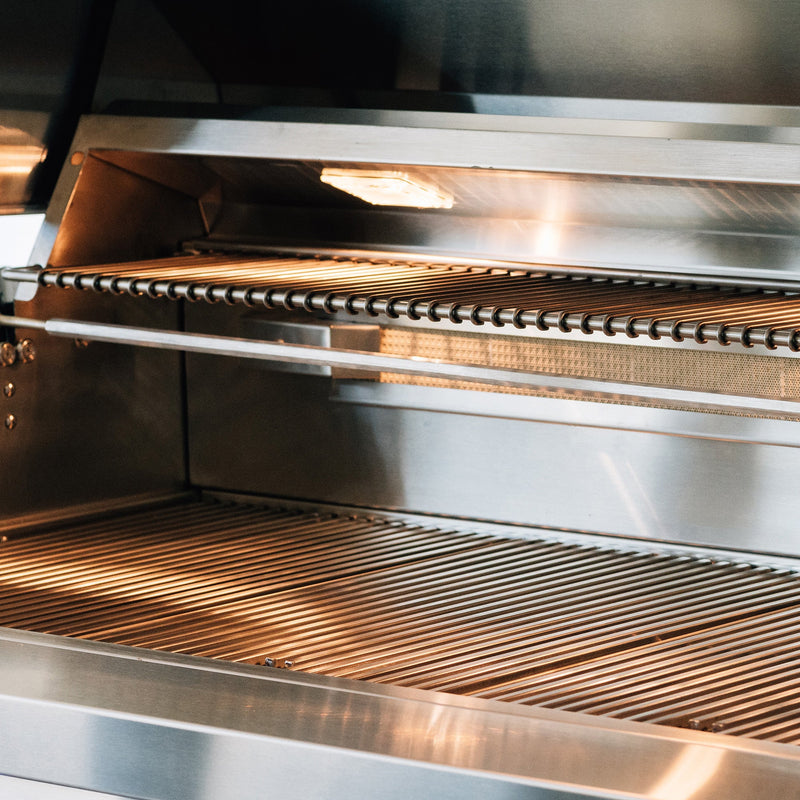

- Interior halogen lights illuminate the food; LED lighting makes the controls easier to see.

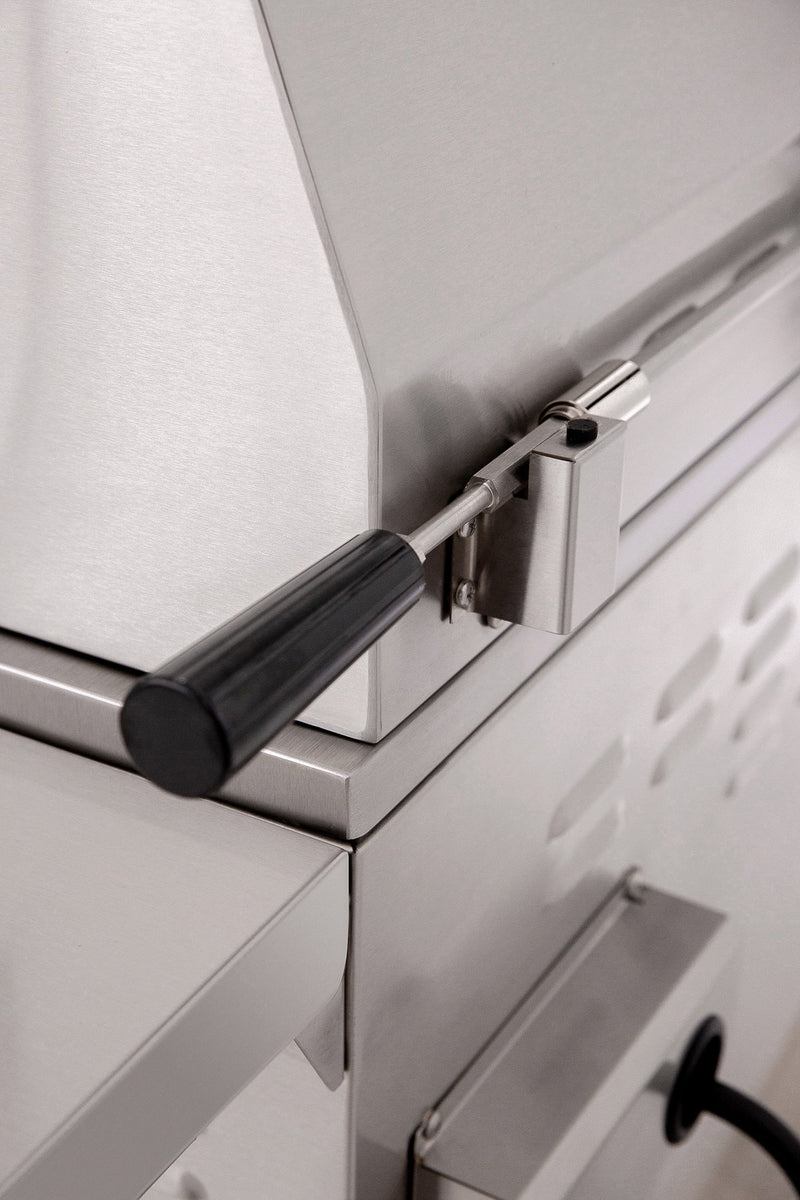

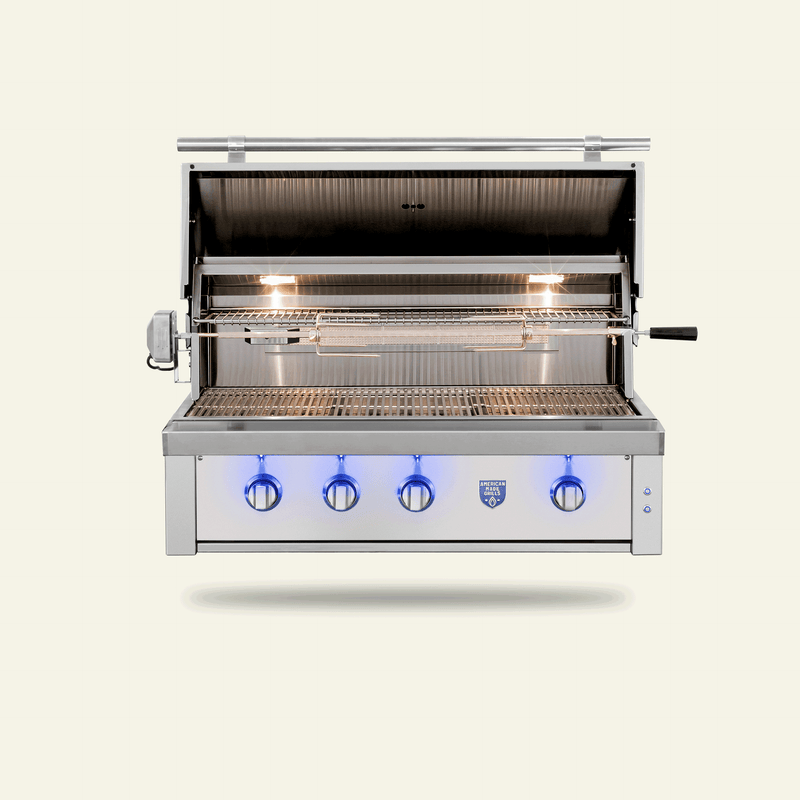

- A spring-assisted hood is easier to lift, and the included rotisserie adds another cooking method.
What’s included
Grill with red brass burners, vinyl cover, rotisserie kit, stainless steel griddle, drop-in infrared sear burner, smoker tray and care kit. The outdoor island, cart and insulating liner are separate.
Choose your fuel
Select natural gas or propane to match your supply. Have your installer confirm the gas type and connection requirements before ordering.
Specifications
| Model family | EST42 |
|---|---|
| Configuration | Built-In |
| Body | 304 stainless steel |
| Gas options | Natural gas or propane |
| Cooking method | Gas |
| Total cooking area | 1,083 sq. in. |
| Cutout, W × D × H | 40.875 in. × 21.625 in. × 10.25 in. |
Plan your installation
For a noncombustible island, the grill cutout is 40.875 inches wide × 21.625 inches deep × 10.25 inches high. These are the grill-head opening dimensions. A combustible enclosure needs a compatible insulating liner with its own larger cutout. Check the complete drawing and manual before construction.
Manuals & drawings
Questions before you order
Which fuel type should I choose?
Choose natural gas or propane to match your supply. Your installer should confirm the connection requirements before you order.
Are a cart or insulating liner included?
No. This listing is for the built-in grill and the included cooking accessories. A cart, island and insulating liner are separate.
Specifications
| Manufacturer | American Made Grills |
|---|---|
| Model | EST42-NG / EST42-LP |
| Installation | Built-in grill head; cart not included |
| Fuel options | Natural gas or propane — choose the version that matches your gas supply |
| Total heat output | 90,000 Total BTUs |
| Burners | 26,000 BTU Red Brass Burners |
| Total cooking area | 1083 sq. in. Total Cooking Surface |
| Construction | #304 Stainless Steel Construction |
| Ignition | Flame Thrower Ignition |
| Interior lighting | Interior Halogen Cooking Lights |

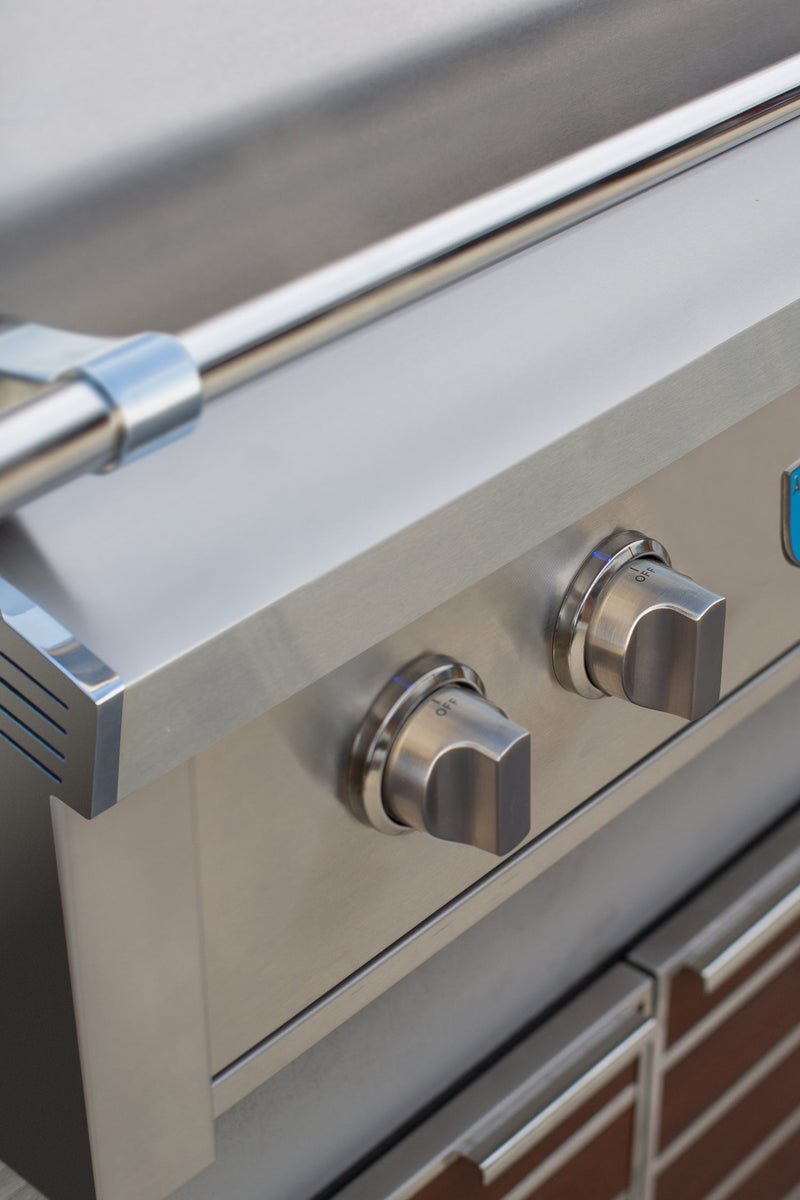

| Control lighting | LED Lights Over Each Knob |

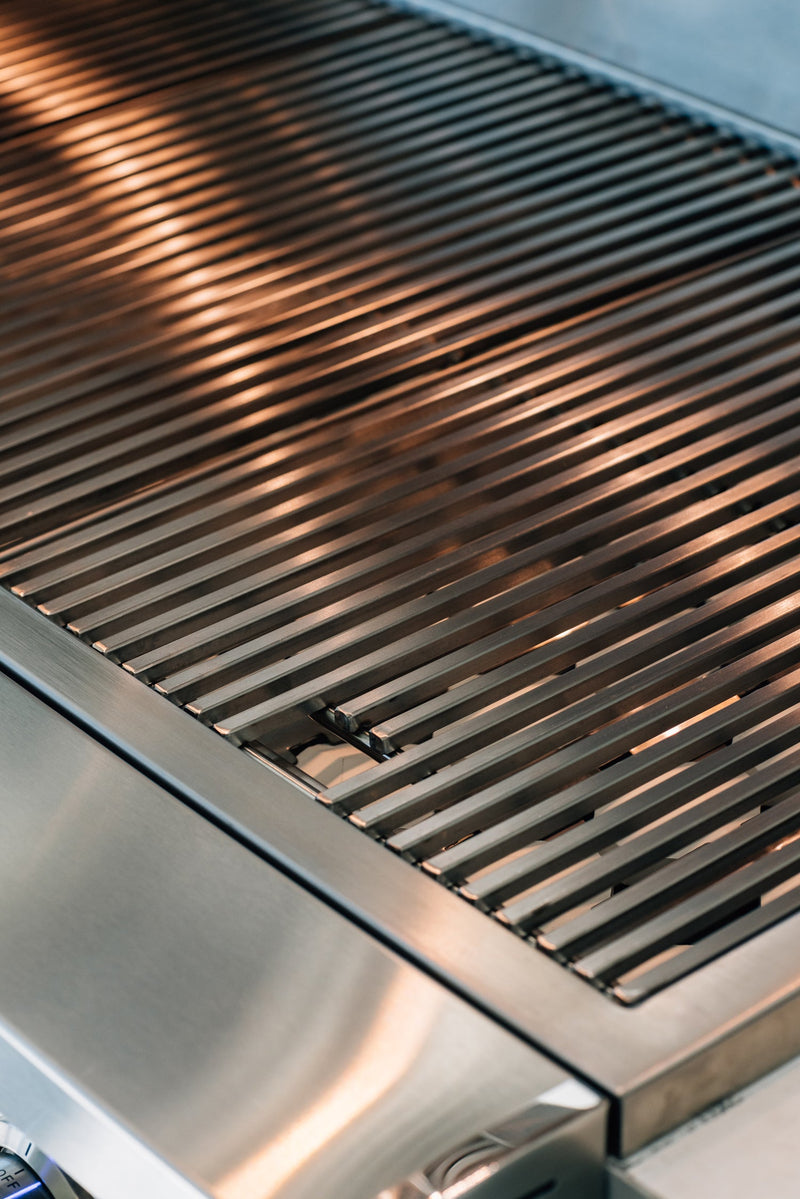

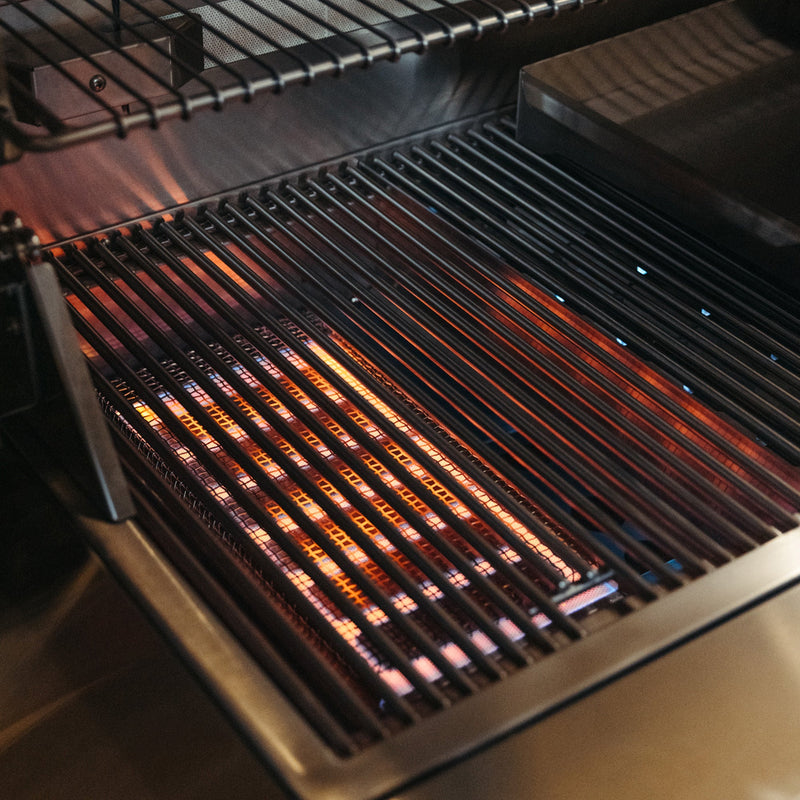

| Cooking grates | Heavy-Duty 9mm Cooking Grates |
| Cutout (width × depth × height) | 40-7/8 in. W × 21-5/8 in. D × 10-1/4 in. H |
| Installation planning | Dimensions are for the appliance opening. Insulating liners require their own opening; follow the complete installation manual. |
| Body | 304 stainless steel |
| Gas options | Natural gas or propane |
| Cooking method | Gas |
| Hood | Spring-assisted hood |
| Heat zones | Heat-zone separators |
| Heat distribution | Easy-clean briquette system |
| Grill-head cover | Included |
Manufacturer Documents
Official documents from American Made Grills. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
