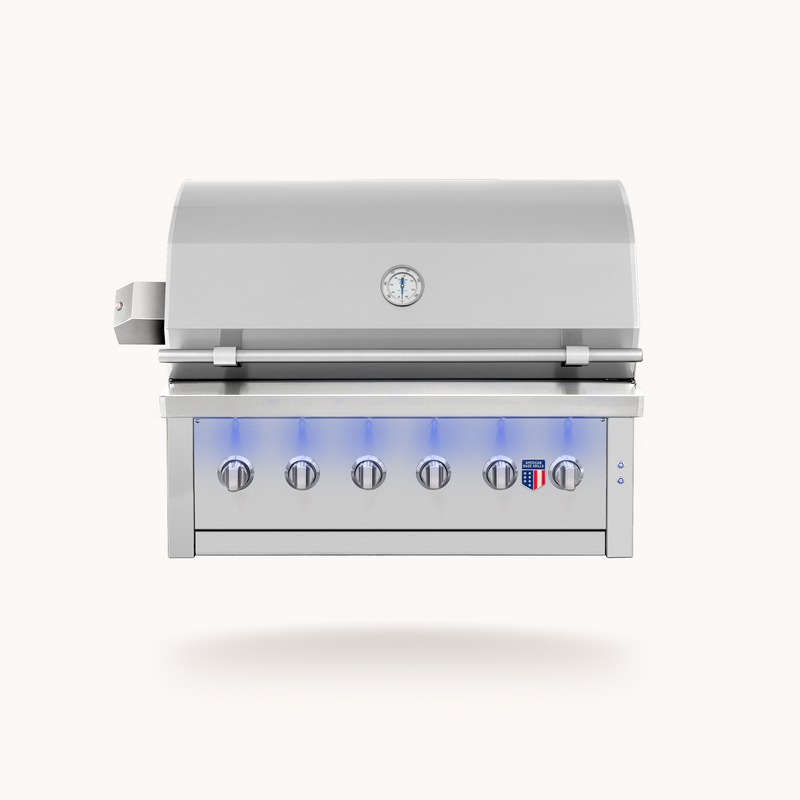

American Made Grills Ovation 42-Inch Built-In Hybrid Grill
Overview
Make a quick meal over gas, or bring charcoal and hardwood into your cooking. The Ovation 42-inch gives you a multi-fuel grill to build into your outdoor kitchen.
Made for meals outdoors
- Fuel trays let you switch between gas and solid-fuel cooking following the manufacturer’s lighting instructions.
- Interior lighting helps you see the food when you cook after sunset.
- Adjustable hood vents and heat-zone separators help you manage different dishes.
What is included
Grill, vinyl grill-head cover, rotisserie kit, grate-lifting tools, stainless steel griddle plate, drop-in infrared sear burner, leather gloves, wood-and-charcoal fuel kit and cleaning care kit. The outdoor island and insulating liner are separate.
Choose your fuel
Select natural gas or propane to match your supply. These are separate factory configurations; confirm your connection before ordering.
Specifications
| Model / size | Ovation 42-inch |
|---|---|
| Configuration | Built-in grill head |
| Construction | 304 stainless steel |
| Gas supply | Choose natural gas or propane |
| Cooking method | Gas, charcoal or hardwood |
| Grill cutout, W × D × H | 40.875 × 25 × 15 inches |
| Total cooking area | 1,315 sq. in. |
| Total output | 132,000 BTU |
| Grill-head cover | Included |
Plan your installation
The grill-head opening is 40.875 × 25 × 15 inches (width × depth × height). A combustible island requires the appropriate insulating liner and its separate opening dimensions. Check the complete drawing and the manual supplied with your grill before construction.
Manuals and drawings
Use the instructions supplied with your exact model for installation and operation.
Before you order
Contact us to confirm availability, delivery timing and any accessories you would like to add.
Specifications
| Manufacturer | American Made Grills |
|---|---|
| Model | OVA42-NG / OVA42-LP |
| Installation | Built-in grill head; cart not included |
| Fuel options | Natural gas or propane — choose the version that matches your gas supply |
| Burners | 22,000 BTU Main Burners |
| Construction | #304 Stainless Steel Construction |
| Ignition | Flame Thrower Ignition |
| Interior lighting | Interior Halogen Cooking Lights |
| Control lighting | LED Lights Over Each Knob |
| Cutout (width × depth × height) | 40-7/8 in. W × 25 in. D × 15 in. H |
| Installation planning | Dimensions are for the appliance opening. Insulating liners require their own opening; follow the complete installation manual. |
| Cooking method | Gas, charcoal or hardwood |
| Total cooking area | 1,315 sq. in. |
| Grill-head cover | Included |
| Hood | Spring-assisted hood |
| Heat zones | Heat-zone separators |
| Total heat output | 132,000 BTU |
| Main burner output | 22,000 BTU per burner |
| Burner construction | 14-gauge 304 stainless steel tube burners |
| Cooking grates | Reversible 9-gauge V-shaped grates |
Manufacturer Documents
Official documents from American Made Grills. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
