The details
Product details
OverviewProduct details and key features

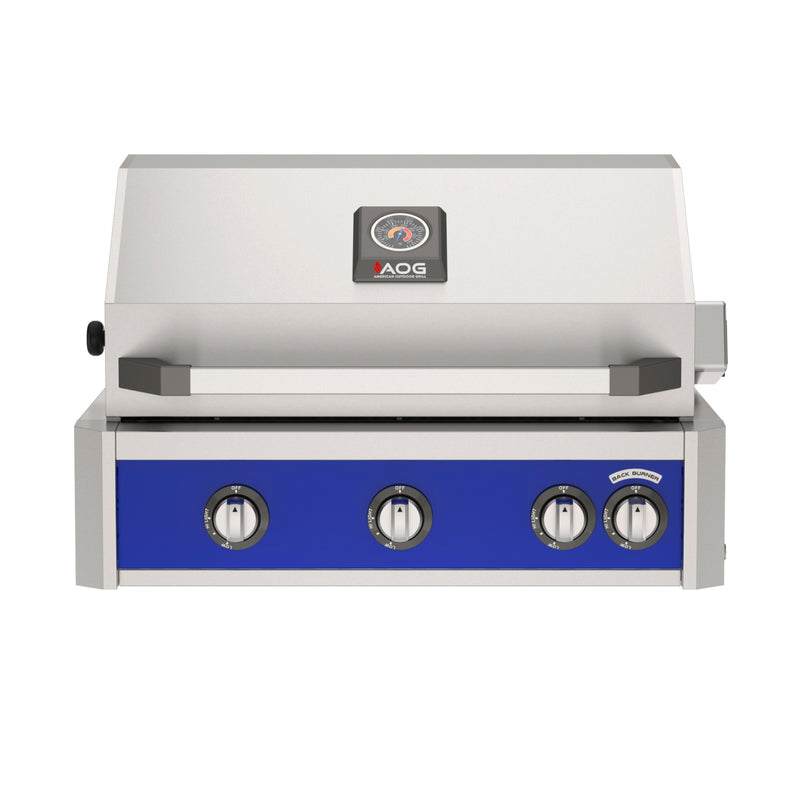

Make the grill the centerpiece of your outdoor island. The 30-inch AOG L Series pairs stainless steel cooking grids with easy-to-read controls and lighting for meals that continue after sunset.
Made for your outdoor kitchen
- Diamond Sear cooking grids and tubular burners are made from 304 stainless steel.
- Vaporizer panels distribute heat beneath the cooking surface.
- A spring-assisted hood makes opening and closing the grill easier.
- Flame Thrower piezo ignition lights the burners from the control knobs.

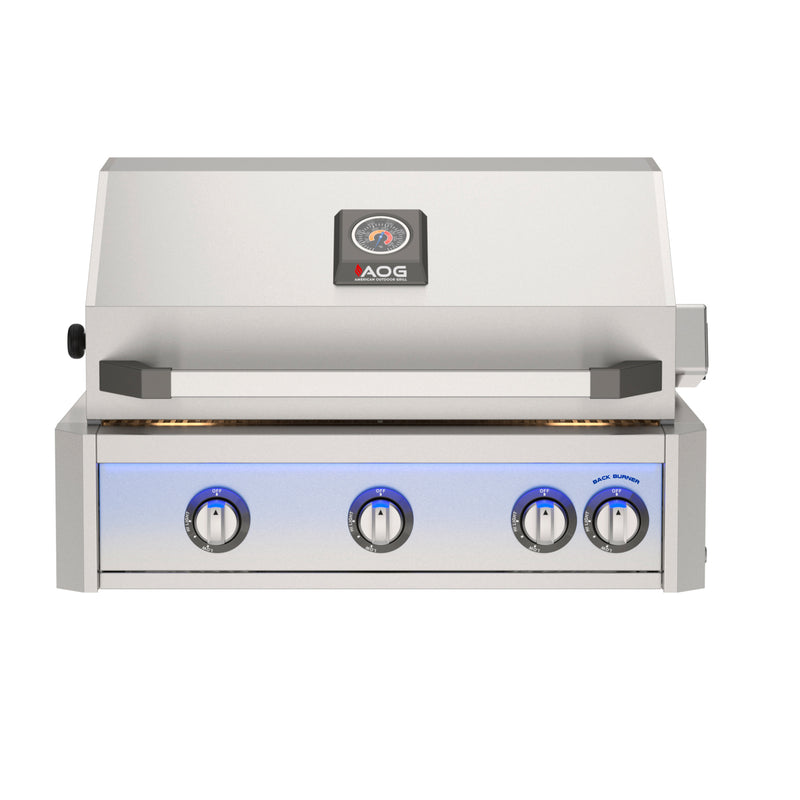

- Interior halogen lights illuminate the food, while a multicolor light bar highlights the controls.
- A backburner and rotisserie kit expand your cooking options.
What’s included
Grill head, protective vinyl cover and manufacturer-supplied gas conversion kit, with backburner and rotisserie kit. The island, insulating liner and optional color accent panels are separate.
Choose your gas type
Choose the factory gas configuration that matches your supply. Have your installer confirm natural gas or propane and the connection requirements before ordering.
Specifications
| Model | AOG30LN |
|---|---|
| Configuration | Built-In |
| Fuel | Natural Gas / Propane |
| Electrical supply for lighting | 120 V AC; 20 A circuit. Follow the installation manual. |
| Cutout, W × D × H | 30.5 in. × 19.5 in. × 8.5 in. |
Plan your installation
For a noncombustible enclosure, allow an opening 30.5 inches wide × 19.5 inches deep × 8.5 inches high. These are opening dimensions, not the overall grill size. A compatible insulating liner, where required, needs its own larger opening. Confirm ventilation, overhangs, clearances and connections in the installation manual before construction.
Manuals & drawings
Questions before you order
Where can I find the installation requirements?
Open the installation and owner’s manual linked above. Confirm the exact model, opening and utility requirements with your installer before construction.
SpecificationsDimensions, materials and product information
| Model | AOG30LN (natural gas) / AOG30LP (propane) |
|---|---|
| Configuration | Built-In |
| Fuel | Natural Gas / Propane |
| Electrical supply for lighting | 120 V AC / 15 A minimum / 60 Hz / GFCI outlet; follow installation manual |
| Cutout, W × D × H | 30.5 in. × 19.5 in. × 8.5 in. |
| Primary cooking area | 540 sq. in. |
| Main burner output | 45,000 BTU |
| Main burner count | 3 |
| Burner material | 304 stainless steel tubular burners |
| Cooking grids | Diamond Sear 304 stainless steel |
| Ignition | Flame Thrower turn-to-light piezo ignition |
| Hood | Spring-assisted hood with analog thermometer |
| Countertop overhang cutout width | 34.5 in. — when applicable; see installation guide |
| Insulating liner | 30-IL-C required for combustible enclosure construction; liner cutout differs |
| Lighting | Interior halogen lights and exterior multi-color LED bar |
| Infrared backburner output | 12,000 BTU |
| Rotisserie kit | Included |
Manufacturer documentsManuals and reference information
Documents from American Outdoor Grill. Review them with your installer and confirm they cover your exact model and revision before using the specifications.
- Installation & owner’s manualManufacturer PDF — confirm your exact model before installation.PDF · American Outdoor Grill · opens in a new tab
- 2026 built-in dimensions and cutout guideUse the row for your size and series. Standard and insulating-liner enclosure openings differ.PDF · American Outdoor Grill · opens in a new tab
Manufacturers may revise their documents. If a document conflicts with this listing or another document, ask our team and your installer to confirm the correct model-specific instructions before installation.
Shipping & returnsDelivery and returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
WarrantyProduct coverage
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact our team with your order number if you need help with a warranty claim.
