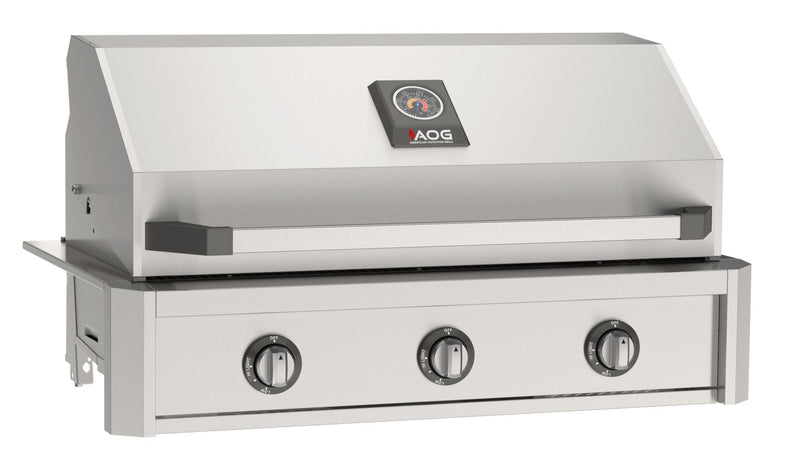

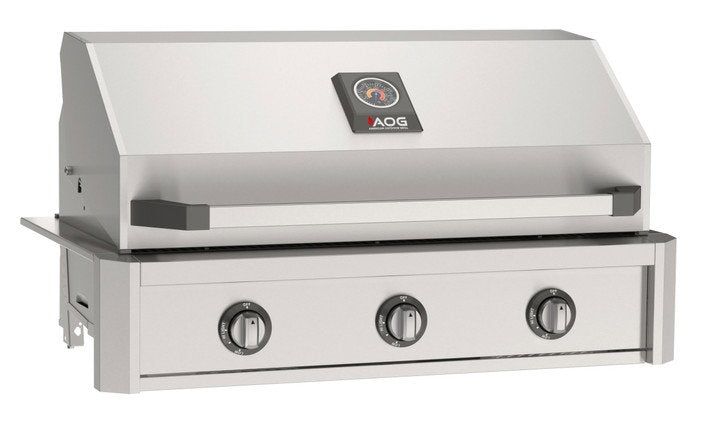

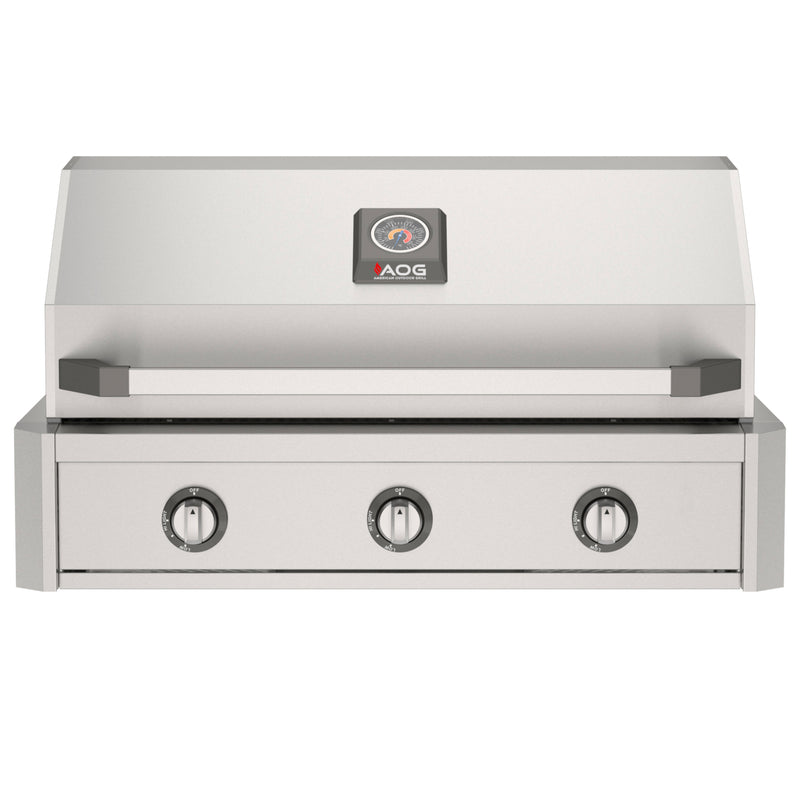

American Outdoor Grill 36-Inch T Series Built-In Gas Grill
Overview
Make the grill the centerpiece of your outdoor island. The 36-inch AOG T Series pairs stainless steel cooking grids with easy-to-read controls, with ignition that needs no batteries or electrical outlet.
Made for your outdoor kitchen
- Diamond Sear cooking grids and tubular burners are made from 304 stainless steel.
- Vaporizer panels distribute heat beneath the cooking surface.
- A spring-assisted hood makes opening and closing the grill easier.
- Flame Thrower piezo ignition lights the burners from the control knobs.
What’s included
Grill head, protective vinyl cover and manufacturer-supplied gas conversion kit. The island, insulating liner and optional color accent panels are separate.
Choose your gas type
Choose the factory gas configuration that matches your supply. Have your installer confirm natural gas or propane and the connection requirements before ordering.
Specifications
| Model | AOG36TN |
|---|---|
| Configuration | Built-In |
| Fuel | Natural Gas / Propane |
| Cutout, W × D × H | 36.75 in. × 19.5 in. × 8.5 in. |
Plan your installation
For a noncombustible enclosure, allow an opening 36.75 inches wide × 19.5 inches deep × 8.5 inches high. These are opening dimensions, not the overall grill size. A compatible insulating liner, where required, needs its own larger opening. Confirm ventilation, overhangs, clearances and connections in the installation manual before construction.
Manuals & drawings
Questions before you order
Where can I find the installation requirements?
Open the installation and owner’s manual linked above. Confirm the exact model, opening and utility requirements with your installer before construction.
Specifications
| Model | AOG36TN (natural gas) / AOG36TP (propane) |
|---|---|
| Configuration | Built-In |
| Fuel | Natural Gas / Propane |
| Cutout, W × D × H | 36.75 in. × 19.5 in. × 8.5 in. |
| Primary cooking area | 648 sq. in. |
| Main burner output | 50,000 BTU |
| Main burner count | 3 |
| Burner material | 304 stainless steel tubular burners |
| Cooking grids | Diamond Sear 304 stainless steel |
| Ignition | Flame Thrower turn-to-light piezo ignition |
| Hood | Spring-assisted hood with analog thermometer |
| Countertop overhang cutout width | 40.75 in. — when applicable; see installation guide |
| Insulating liner | 36-IL-C required for combustible enclosure construction; liner cutout differs |
| Ignition power | No electricity or batteries required |
| Rotisserie kit | Optional, sold separately |
Manufacturer Documents
Official documents from American Outdoor Grill. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
