Dimplex Ignite Quest 36" Smart Built-In Electric Firebox - Model QST36
Overview

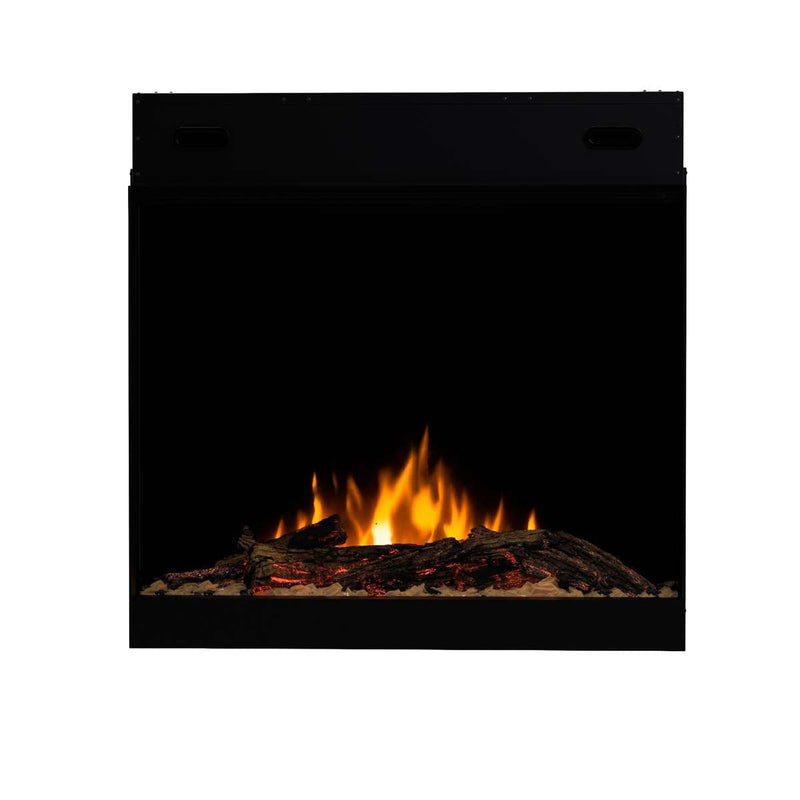

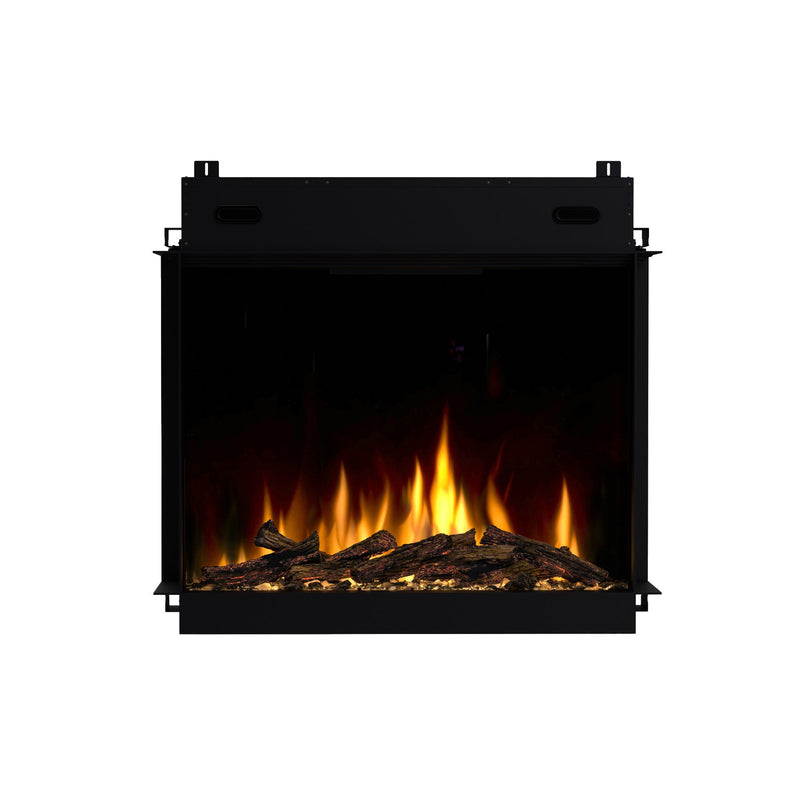

The Dimplex Ignite Quest 36" (QST36) sits between two worlds on purpose: the proportions of a traditional firebox, the flame of a modern linear fireplace. It is a built-in electric unit — no chimney, no gas line, no venting — measuring 36-5/8 x 36-5/8 x 17-1/2 in, with a viewing area of 36-5/8 x 27-1/8 x 8-3/4 in.
The flame
- Multi-Fire flame effect with 9 color themes and adjustable brightness.
- 10 quick-connect moveable logs sitting over a tumbled glass ember bed, with 3 ember themes.
- A built-in crackling sound effect on the remote, with more options in the Flame Connect app.
- Flame-only mode, so it earns its place in the room through summer as well.
The heat
- Comfort$aver heating system, fan-forced, rated for rooms up to 1,000 sq. ft.
- 1500 W / 5118 BTU on a 120 V supply (12.5 A), or 2500 W / 8530 BTU on 240 V (10.4 A).
- Hardwired. Dimplex packs a 120 V plug kit in the carton if you would rather plug it in; a 240 V installation is hardwire only.
- Heat-only mode, and the heater can be permanently disabled if you only want the flame.
How it frames in

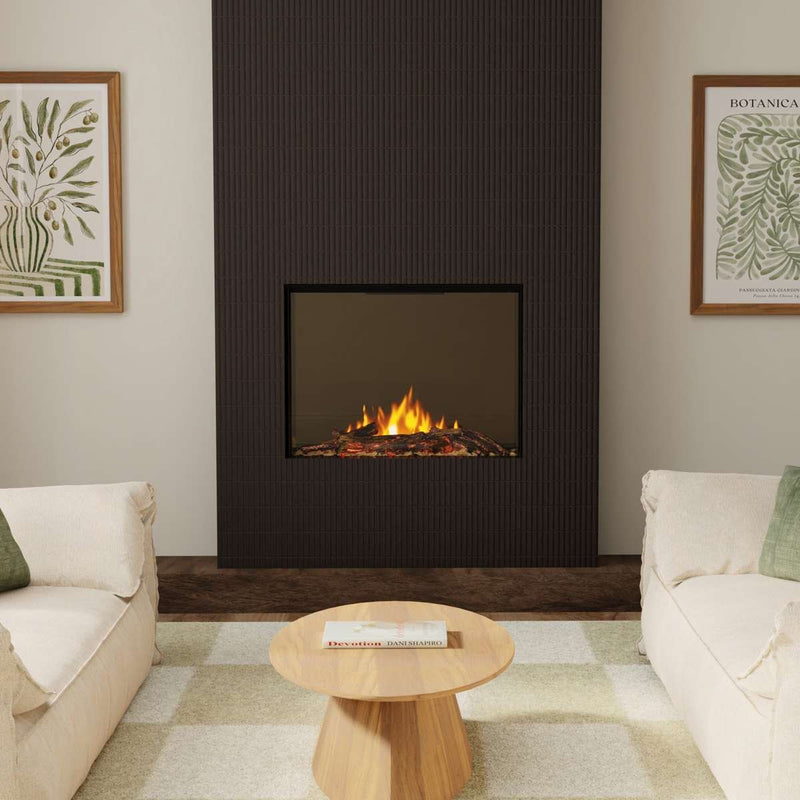

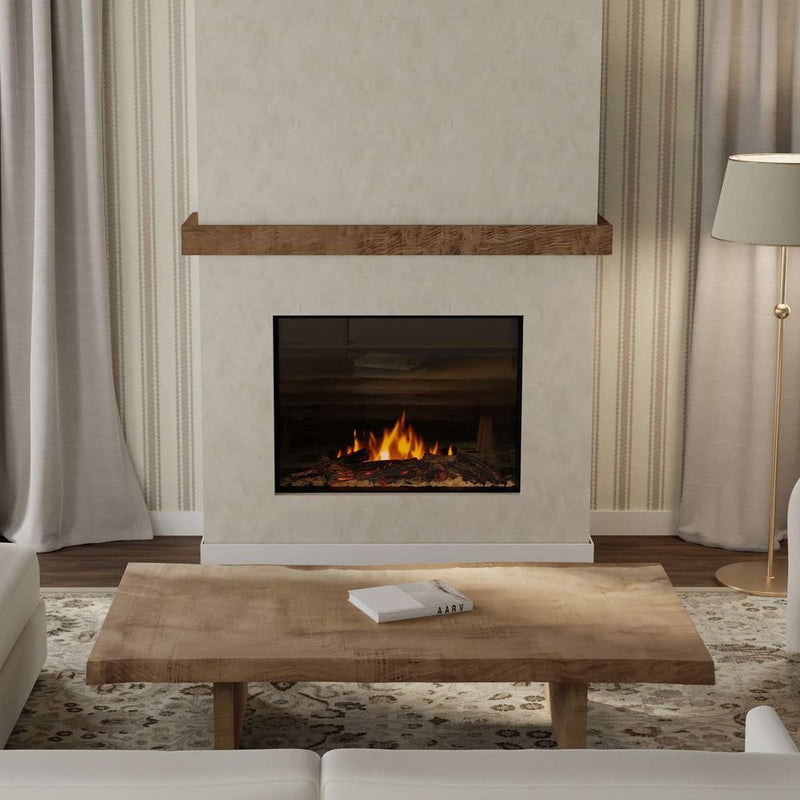

The rough opening is 36-3/4 W x 37-1/8 H x 18 D in. Front-facing, left-corner, right-corner and bay installations are all supported — corner and bay layouts need the Trim Installation Kit (Dimplex order no. 500005394, sold separately).
One thing your framer needs to know: this firebox is not load-bearing. The header above the opening has to carry the building load, not the top of the unit.
Control
Dimplex Flame Connect app over Wi-Fi, the included wall-mountable remote, or the 3-button touch panel on the unit. There is an 8-hour timer and self-diagnostic technology that reports faults instead of leaving you guessing.
cULus Listed (File E71416) and backed by a 5-year limited warranty from Dimplex.
Free freight shipping. Not sure it fits? Send us your opening dimensions and we will check the framing against the manufacturer drawing before you order.
Specifications
| Brand | Dimplex |
|---|---|
| Series | Ignite Quest |
| Model | QST36 |

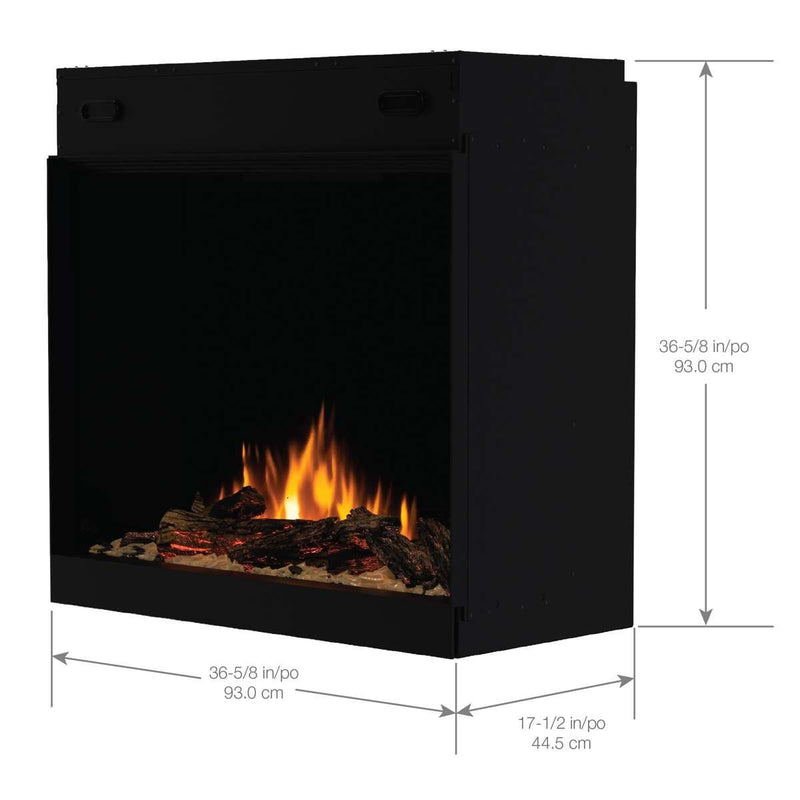

| Product dimensions (W x H x D) | 36-5/8 x 36-5/8 x 17-1/2 in |
| Framing / rough opening (W x H x D) | 36-3/4 W x 37-1/8 H x 18 D in |
| Viewing area (W x H x D) | 36-5/8 x 27-1/8 x 8-3/4 in (93.0 x 68.9 x 22.4 cm) |
| Carton dimensions (W x H x D) | 40-2/8 x 41 x 23-4/8 in |
| Product weight | 194 lbs / 88 kg |
| Packaged weight | 216 lbs / 98 kg |
| Flame effect | Multi-Fire |
| Flame technology | Optiflame |
| Flame color themes | 9, adjustable brightness |
| Ember bed | Quick Connect moveable logs (10) with tumbled glass embers — 3 themes |
| Heat operation | Comfort$aver heating system, fan-forced |
| Heating range | Up to 1,000 sq. ft. |
| Volts | 120 (3-wire) / 240 (4-wire) |
| Watts | 1500 / 2500 |
| BTU | 5118 / 8530 |
| Amps | 12.5 A at 120 V / 10.4 A at 240 V |
| Wiring type | Hardwire (120 V plug kit included in the carton; 240 V is hardwire only) |
| Venting | None required |
| Controls | Onboard 3-button panel, remote with wall mount, Dimplex Flame Connect app, 8-hour timer |
| Installation | Front-facing, left or right corner, or bay (corner and bay require the Trim Installation Kit, order no. 500005394) |
| Certification | cULus Listed, File E71416 — UL 2021 4th Ed. / CSA C22.2 No. 46 |
| Warranty | 5-year limited (the Dimplex technical specification sheet states 5-year limited on electrical components) |
| UPC | 781052157637 |
| Dimplex order number | 500005299 |
Manufacturer Documents
Official documents from Dimplex. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
