Dimplex Opti-Myst Plug Kit for CDFI1000P & CDFI500P Models
Overview

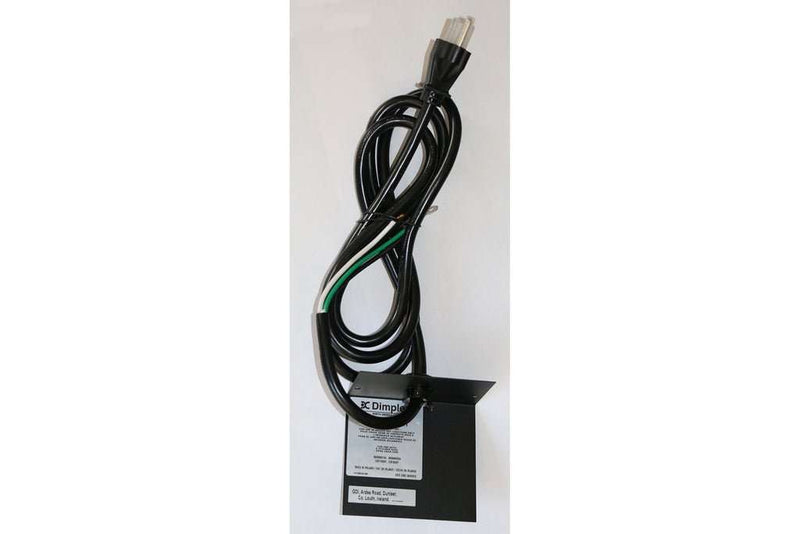

The Dimplex Optimyst Plug Kit (CDFI-PLUGKIT) is the optional 120 V cord kit for Dimplex Optimyst water-vapor cassettes. Optimyst cassettes ship ready for a hardwired connection; this kit lets you run one from an ordinary household outlet instead, which is usually the difference between calling an electrician and not.
What it is
- Optional 120 V plug kit for the CDFI500 and CDFI1000 Optimyst water-vapor cassettes by Dimplex.
- Includes a 7 foot cord.
- Plugs into any standard household outlet.
Before you order
One kit runs one cassette. If your installation uses more than one cassette — a 40" Optimyst Pro Box uses two, a 60" uses three — order accordingly, or hardwire the system instead.
Free shipping. Not sure whether your cassette is already wired? Send us a photo of the connection and we will tell you.
Specifications
| Model Number | CDFI-PLUGKIT |
|---|---|
| Part | CDFI-PLUGKIT |
| Commerce Sku | X-CDFI-PLUGKIT |
| Upc Gtin | 781052105591 |
| Series | Opti-myst |
| Voltage | 120 V (standard household outlet) |
| Power Connection | Plug-In |
| Cord Length In | 84 |
| Product Dimensions In | 0.25 W x 0.25 H (kit hardware); cord run 84 in / 213.36 cm |
| Carton Dimensions In | 15.38 W x 6.13 H x 3.13 D |
| Carton Dimensions Cm | 39.05 W x 15.56 H x 7.94 D |
| Weight Lb Kg | 1.2 lb / 0.54 kg |
| Warranty | 1 year limited warranty |
| Whats In The Box | Power adapter / power cord assembly with a standard three-prong plug, plus wire connectors and installation instructions. |
| Compatibility | Optimyst Cassettes (CDFI500 / CDFI1000 series). The CDFI500-PRO 3-part specification lists CDFI-PLUGKIT as its optional plug kit. |
Manufacturer Documents
Official documents from Dimplex. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
