Fire Magic Echelon Diamond E790i Built-In Gas Grill — Analog Control
Overview

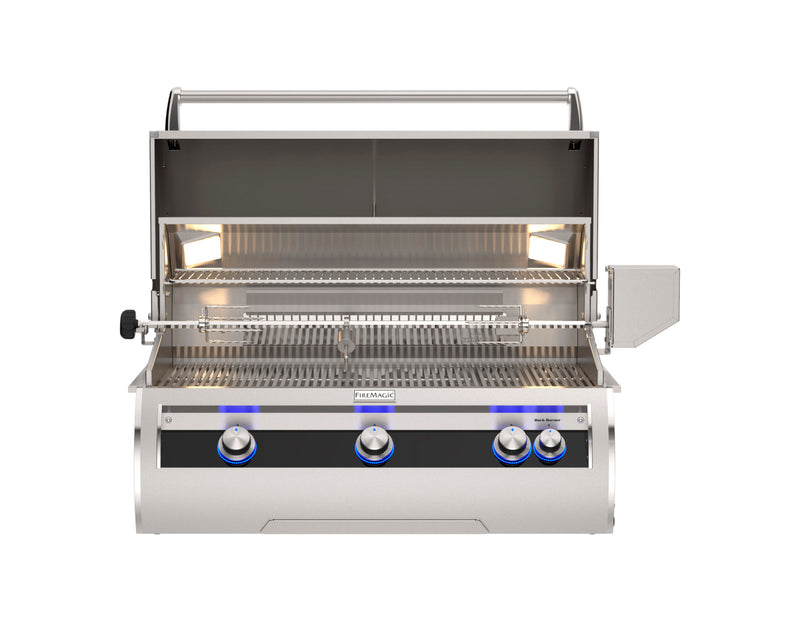

Make room for relaxed meals and larger gatherings. The Echelon Diamond pairs cast stainless steel burners with Diamond Sear cooking grids, interior lighting and a dedicated rotisserie setup.
Choose your cooking setup
Standard cast burners suit everyday grilling. The infrared option replaces the left standard burner for high-heat searing. Both versions include the rotisserie backburner and kit.

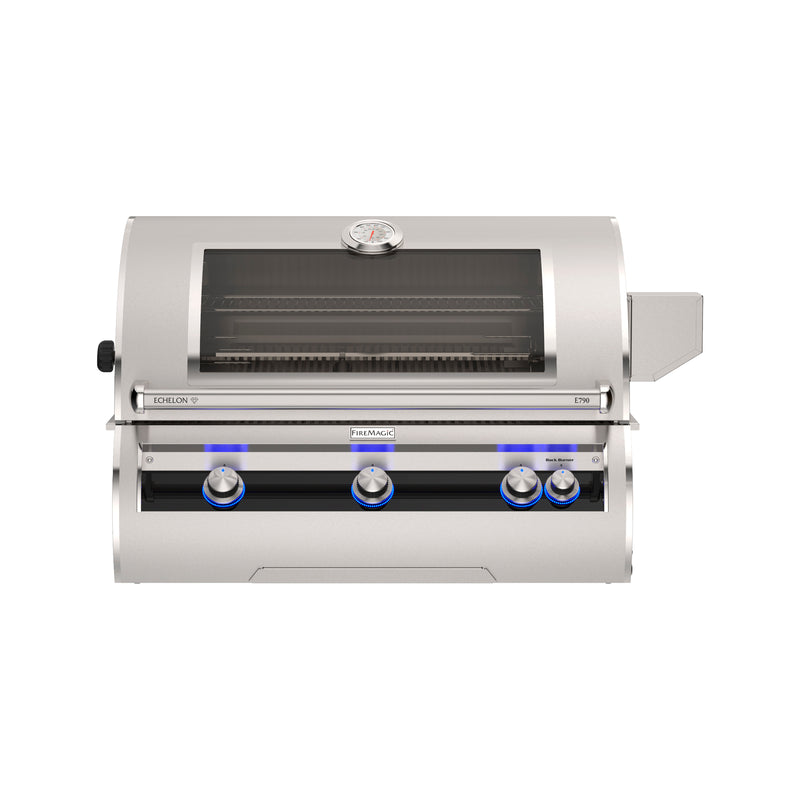

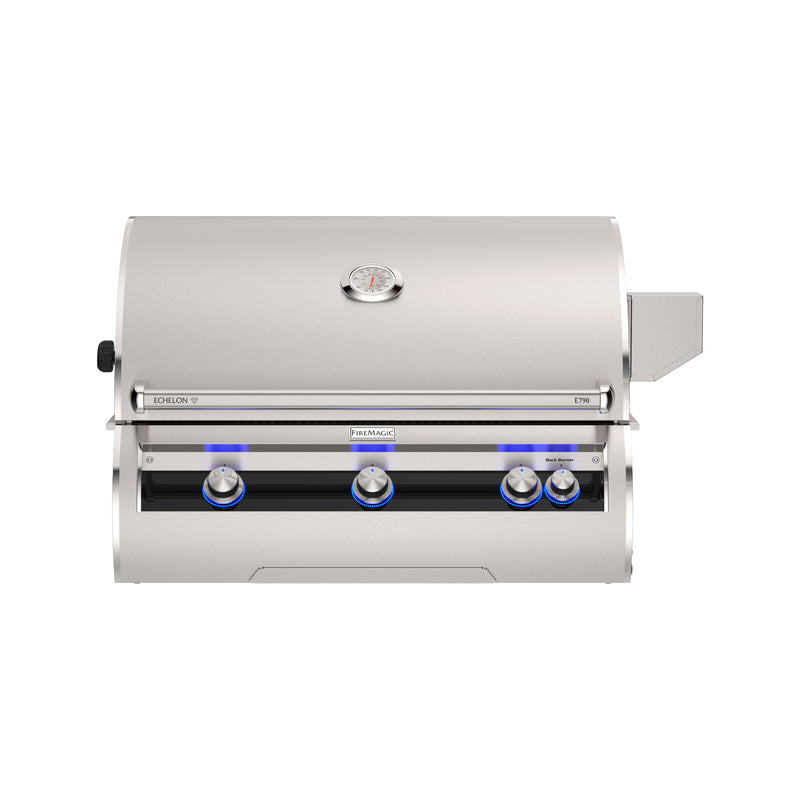

Choose a solid hood or add the Magic View Window to check food with the lid closed.

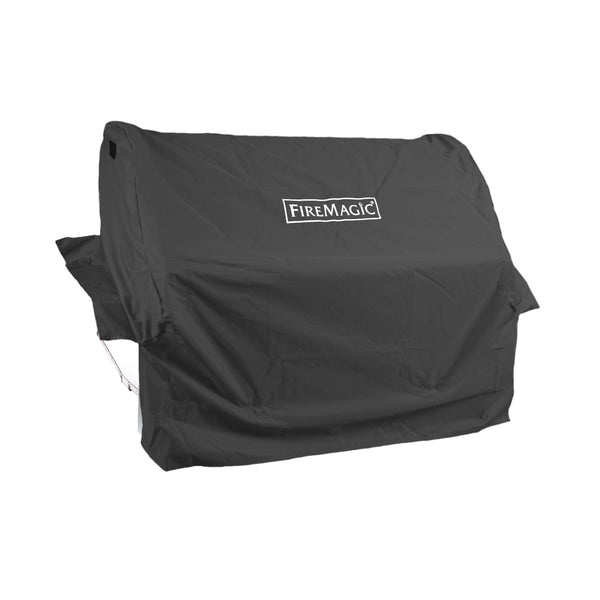

Choose the factory natural-gas or propane version that matches your supply. The protective cover is sold separately.
Specifications
| Model | E790i |
|---|---|
| Installation | Built-in grill head |
| Fuel | Choose factory natural gas or propane |
| Control | Analog |
| Cooking Surface | 36″w x 22″d (792 sq. in.) |
| Main burners | 96,000 BTU’s |
| Rotisserie | Backburner and rotisserie kit included |
| Hood | Choose solid hood or Magic View Window |
| Island cutout, W × D × H | 37 × 23.5 × 11.5 inches |
Plan your installation
For a noncombustible island, plan an opening 37 inches wide × 23.5 inches deep × 11.5 inches high. The island and any required insulating liner are separate. A liner has its own larger opening. Confirm ventilation, clearances and utility requirements in the manual before construction.
Manuals & drawings
Contact us to confirm availability and delivery timing for your chosen configuration.
Specifications
| Model | E790i |
|---|---|
| Installation | Built-in grill head |
| Fuel | Choose factory natural gas or propane |
| Control | Analog |
| Cooking Surface | 36″w x 22″d (792 sq. in.) |
| Main burners | 96,000 BTU’s |
| Rotisserie | Backburner and rotisserie kit included |
| Hood | Choose solid hood or Magic View Window |
| Island cutout, W × D × H | 37 × 23.5 × 11.5 inches |
Manufacturer Documents
Official documents from Fire Magic. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
