The details
Product details
OverviewProduct details and key features

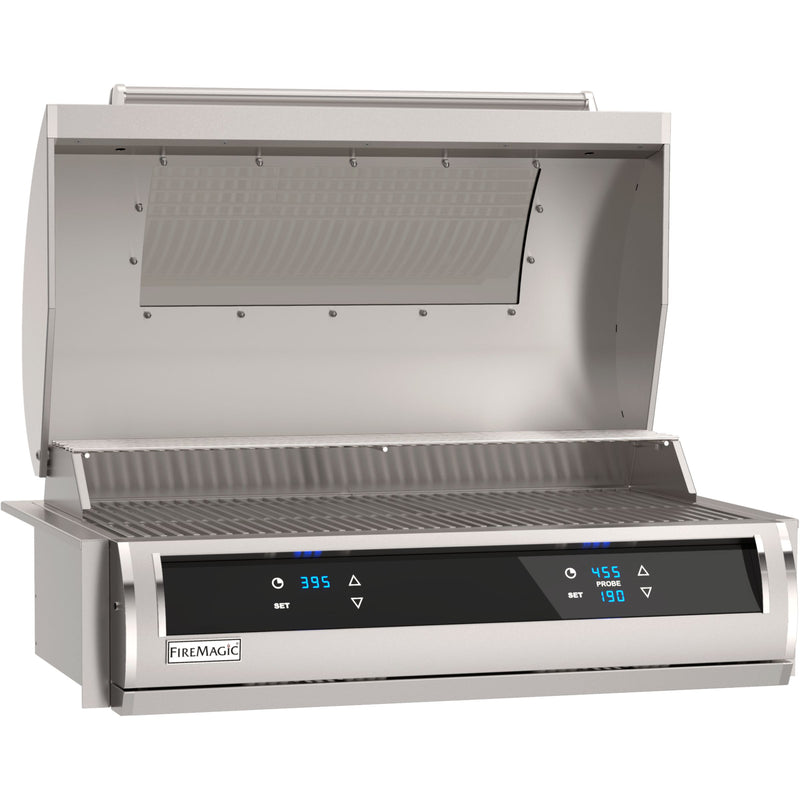

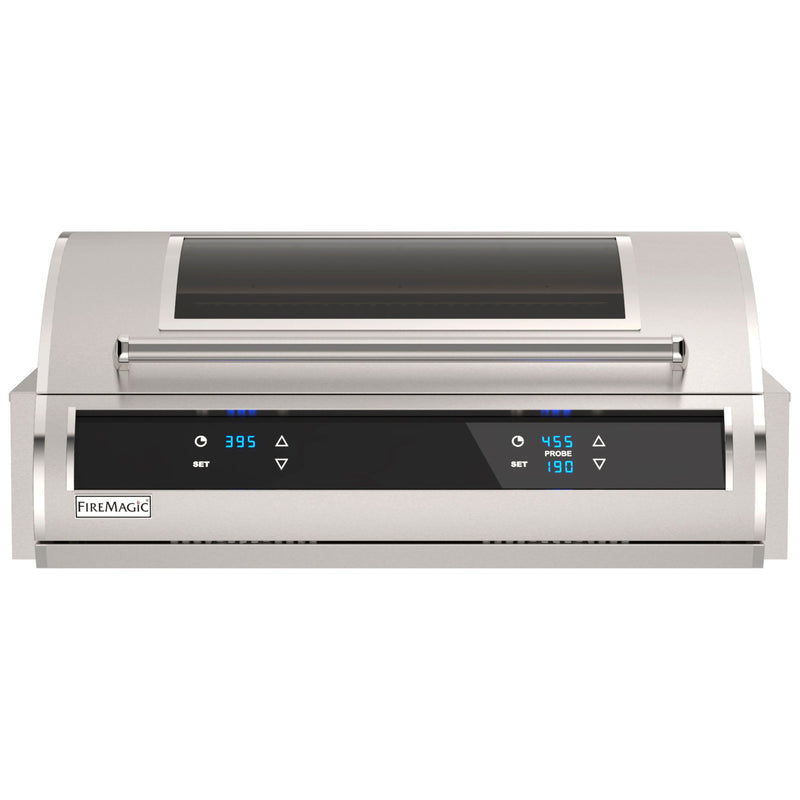

Build an outdoor cooking space around electric grilling. This EL500 built-in model gives you dual-zone digital temperature control and a ceramic-glass hood window so you can check the food without lifting the lid.
Made for your outdoor kitchen
- 304 stainless steel construction and Diamond Sear cooking grids.
- A removable warming rack adds flexibility when serving a meal.
- An accessible drip tray makes cleanup easier.
- Two thermostatically controlled zones let you manage different cooking temperatures.
- A digital thermometer and meat probe help you follow cooking temperature.
What’s included
Electric grill and Magic View Window. Island construction, electrical work and any optional insulating liner are separate.
Plan the electrical connection
This grill requires a 240 V supply and a minimum 30 A circuit. Have a qualified electrician confirm the requirements in the manual for your installation.
Specifications
| Model | EL500i |
|---|---|
| Configuration | Built-In |
| Fuel | Electric |
| Temperature control | Dual-Zone Digital |
| Hood window | Magic View Window included |
| Cooking Area | 30” x 16” (480 sq. in.) |
| Electrical supply | 240 V AC; 30 A minimum circuit. Follow the exact installation manual. |
| Cutout, W × D × H | 33 in. × 17.5 in. × 7.25 in. |
Plan your installation
For a noncombustible enclosure, allow an opening 33 inches wide × 17.5 inches deep × 7.25 inches high. These are opening dimensions, not the overall grill size. A compatible insulating liner, where required, needs its own larger opening. Confirm ventilation, overhangs, clearances and connections in the installation manual before construction.
Manuals & drawings
Questions before you order
Where can I find the installation requirements?
Open the installation and owner’s manual linked above. Confirm the exact model, opening and utility requirements with your installer before construction.
SpecificationsDimensions, materials and product information
| Model | EL500i |
|---|---|
| Configuration | Built-In |
| Fuel | Electric |
| Temperature control | Dual-Zone Digital |
| Hood window | Magic View Window included |
| Cooking Area | 30” x 16” (480 sq. in.) |
| Electrical supply | 240 V AC; 30 A minimum circuit. Follow the exact installation manual. |
| Cutout, W × D × H | 33 in. × 17.5 in. × 7.25 in. |
Manufacturer documentsManuals and reference information
Documents from Fire Magic. Review them with your installer and confirm they cover your exact model and revision before using the specifications.
Manufacturers may revise their documents. If a document conflicts with this listing or another document, ask our team and your installer to confirm the correct model-specific instructions before installation.
Shipping & returnsDelivery and returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
WarrantyProduct coverage
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact our team with your order number if you need help with a warranty claim.
