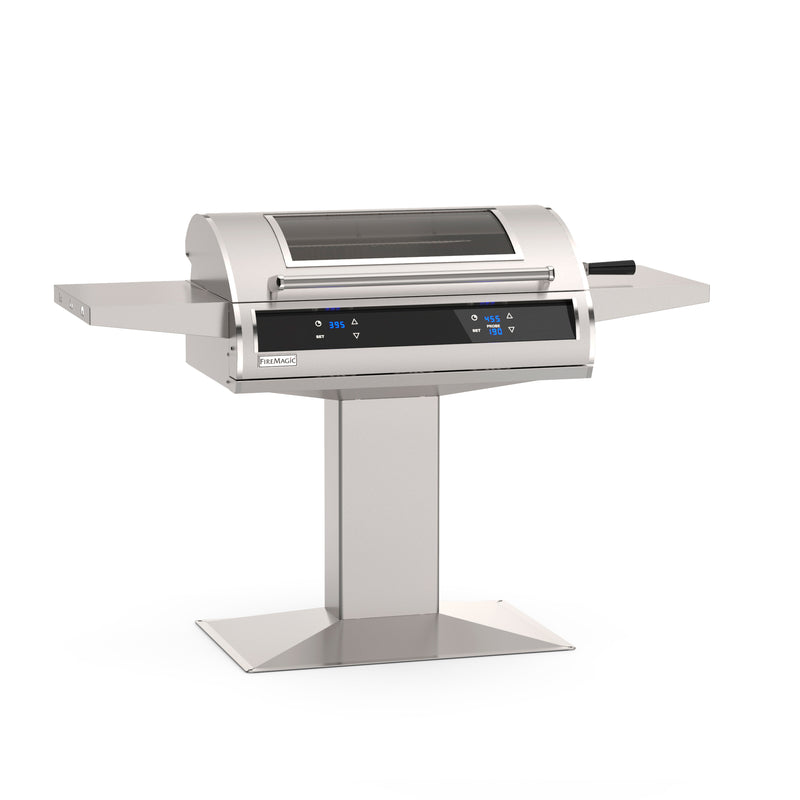

Fire Magic EL500s Accessible Patio Post Electric Grill — Dual-Zone Digital Control with Magic View Window
Overview
Build an outdoor cooking space around electric grilling. This EL500 accessible patio post model gives you dual-zone digital temperature control and a ceramic-glass hood window so you can check the food without lifting the lid.
Made for your outdoor kitchen
- 304 stainless steel construction and Diamond Sear cooking grids.
- A removable warming rack adds flexibility when serving a meal.
- An accessible drip tray makes cleanup easier.
- Two thermostatically controlled zones let you manage different cooking temperatures.
- A digital thermometer and meat probe help you follow cooking temperature.
What’s included
Electric grill with the specified mounting post and Magic View Window. Island construction, electrical work and any optional insulating liner are separate.
Plan the electrical connection
This grill requires a 240 V supply and a minimum 30 A circuit. Have a qualified electrician confirm the requirements in the manual for your installation.
Specifications
| Model | EL500s |
|---|---|
| Configuration | Accessible Patio Post |
| Fuel | Electric |
| Temperature control | Dual-Zone Digital |
| Hood window | Magic View Window included |
| Electrical supply | 240 V AC; 30 A minimum circuit. Follow the exact installation manual. |
Plan your installation
This accessible patio post configuration does not use a built-in island opening. Follow the manual for anchoring the post, clearances and electrical connections.
Manuals & drawings
Questions before you order
Where can I find the installation requirements?
Open the installation and owner’s manual linked above. Confirm the exact model, opening and utility requirements with your installer before construction.
Specifications
| Model | EL500s |
|---|---|
| Configuration | Accessible Patio Post |
| Fuel | Electric |
| Temperature control | Dual-Zone Digital |
| Hood window | Magic View Window included |
| Electrical supply | 230/240 V AC / 30 A minimum / single-phase / 50–60 Hz / GFCI circuit breaker |
| Rated appliance power | 6,000 W / 25 A |
| Ingress protection | IPX4 |
| Overall dimensions with shelves, lid closed (W × D × H) | 56.125 × 23.75 × 38.5 in. |
| Patio base footprint (W × D) | 30.25 × 20.25 in. |
| Shelf height | 32 in. |
| Island cutout | Not applicable — patio post model; follow anchoring and electrical installation instructions |
Manufacturer Documents
Official documents from Fire Magic. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
