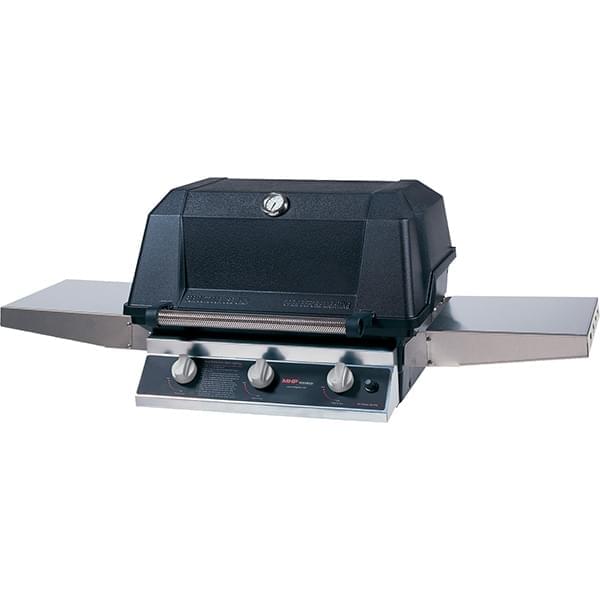

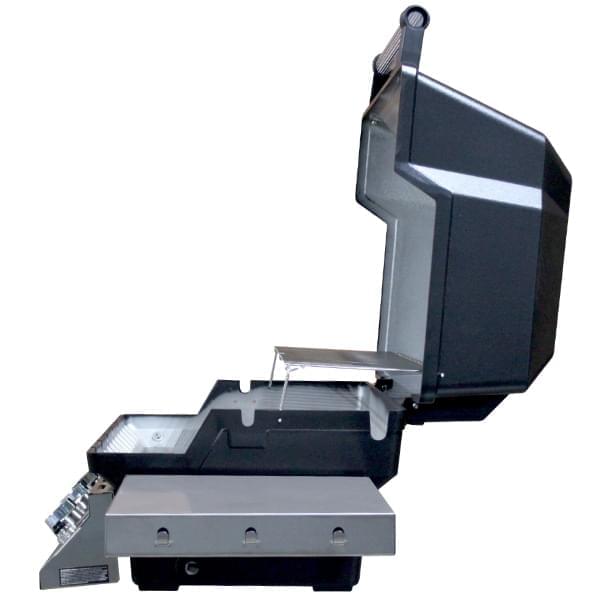

MHP W3G4DD 27-Inch Tri-Burn Gas Grill Head
Overview
Cook different foods across three independently controlled grilling zones. The MHP W3G4DD pairs a durable cast-aluminum housing with reversible SearMagic grids for different foods and cooking styles.
Choose the right foundation
This listing is for the grill head only. The two folding shelves are included. A compatible cart, column or post must be purchased separately; no base is included. A protective cover, gas installation and optional accessories are separate.
Select natural gas or propane to match your supply. Follow the manufacturer manual for connections and clearances.
Specifications
| Model | W3G4DD |
|---|---|
| Included | Grill head only |
| Burner system | Three cast stainless steel burners |
| Cooking grids | Reversible SearMagic anodized aluminum |
| Primary cooking area | 433.5 sq. in. |
| Total cooking area | 642 sq. in. |
| Head size without shelves, W × D × H | 26.75 × 24.5 × 19 inches |
| Side shelves | Two folding stainless steel shelves |
| Mounting | Compatible cart, column or post required and sold separately |
Manuals & drawings
- MHP owner, installation and maintenance manual (PDF)
- W3G Tri-Burn supplementary assembly instructions (PDF)
Contact us to confirm availability and delivery timing.
Specifications
| Model | W3G4DD |
|---|---|
| Included | Grill head only |
| Burner system | Three cast stainless steel burners |
| Cooking grids | Reversible SearMagic anodized aluminum |
| Primary cooking area | 433.5 sq. in. |
| Total cooking area | 642 sq. in. |
| Head size without shelves, W × D × H | 26.75 × 24.5 × 19 inches |
| Side shelves | Two folding stainless steel shelves |
| Mounting | Compatible cart, column or post required and sold separately |
Manufacturer Documents
Official documents from Modern Home Products. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
