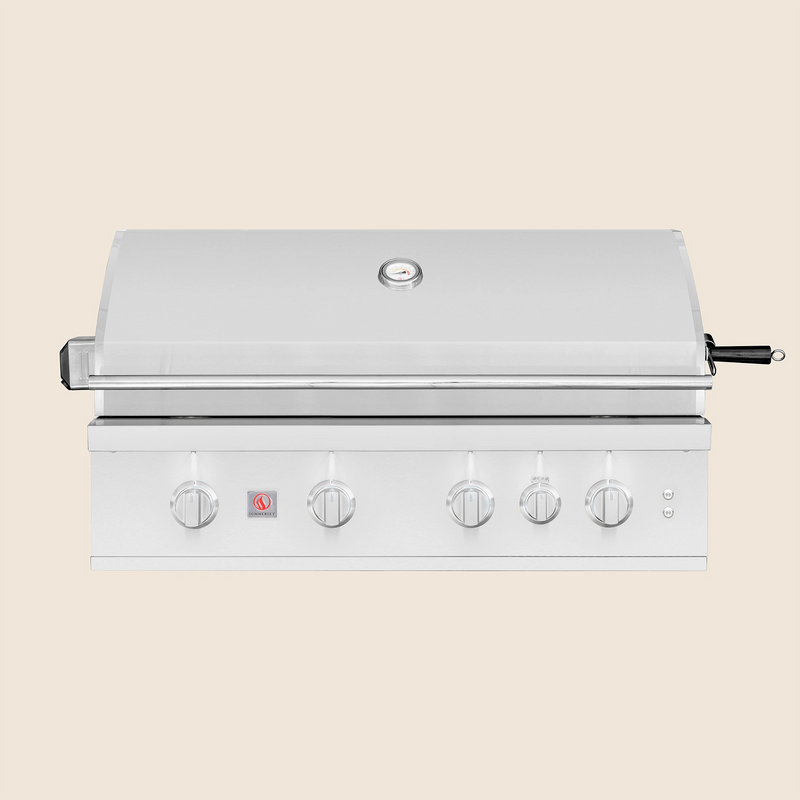

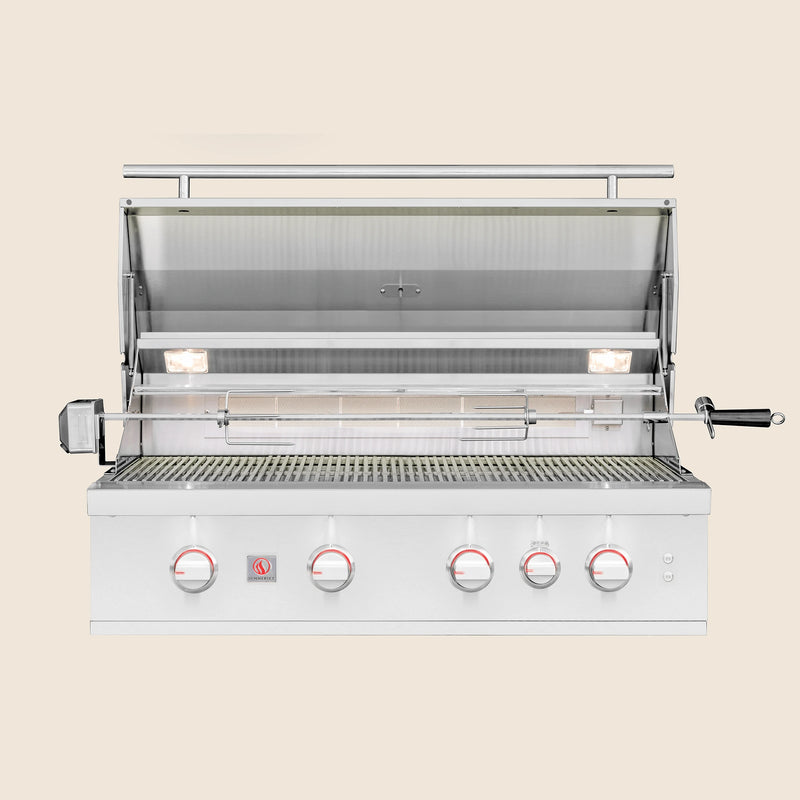

Summerset TRL Pro 40-Inch Built-In Gas Grill
Overview
Keep dinner moving with separate heat zones and room for rotisserie cooking. The TRL Pro pairs a spring-assisted hood with illuminated controls and interior lighting for an outdoor kitchen that is comfortable to use from lunch into the evening.

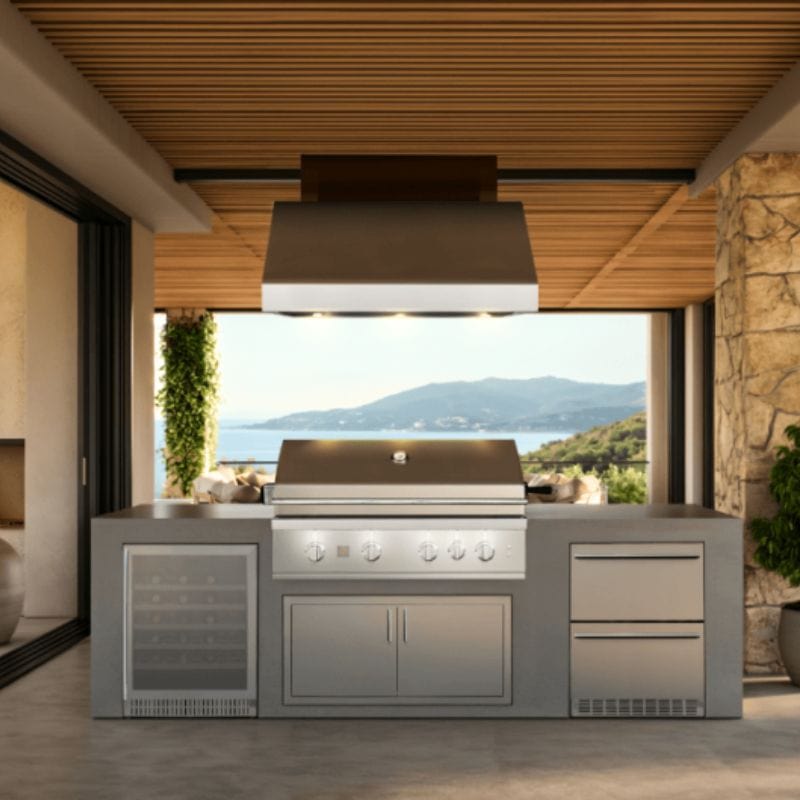

Built for your outdoor kitchen
- Heat-zone separators help you manage different foods across the grill.

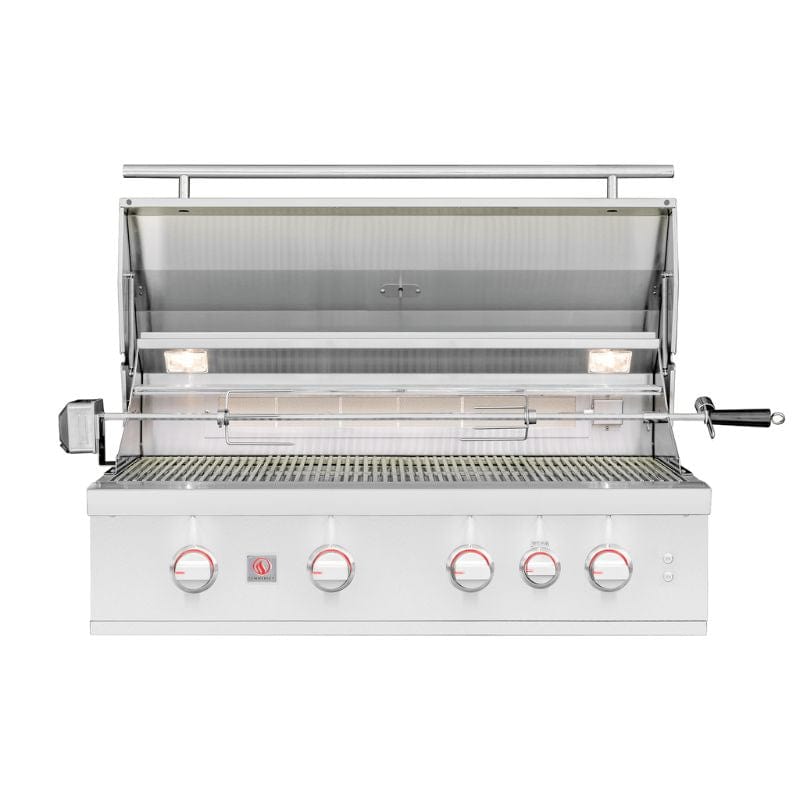

- An infrared rear burner supports rotisserie cooking; the rotisserie kit is included.
- Interior halogen lighting and white-to-red control lighting improve visibility.
- A spring-assisted hood makes opening the grill easier.
What's included
Built-in grill, warming rack and rotisserie kit. The island, cart and insulating liner are not included.
Choose your fuel
Select natural gas for a compatible permanent gas supply or propane for a propane installation. Match the grill to your planned fuel supply and have your installer confirm the connection requirements before ordering.
Specifications
| Model family | TRLPRO40 |
|---|---|
| Configuration | Built-In |
| Gas options | Natural gas or propane |
| Body | 304 stainless steel |
| Main burner output | 20,000 BTU per burner |
| Cooking grates | 8 mm square cooking grates |
| Cutout, W × D × H | 38.5 in. × 20.75 in. × 9.375 in. |
Plan your installation
The noncombustible island opening is 38.5 inches wide × 20.75 inches deep × 9.375 inches high. These are cutout dimensions, not the overall grill size or required clearances. Have your installer review the complete manufacturer drawing, ventilation and clearance requirements before building the island.
Manuals & drawings
Questions before you order
Is this a complete grill with a cart?
This is the built-in grill head for an outdoor island. A cart, island and insulating liner are not included.
Which gas type should I order?
Choose natural gas or propane to match your supply. Your installer should confirm the fuel and connection requirements before ordering.
Can I build the opening from the size in the title?
No. The nominal grill size differs from the island cutout. Use the exact cutout table and the complete manufacturer installation drawing before construction.
Specifications
| Manufacturer | Summerset |
|---|---|
| Installation | Built-in |
| Model | TRLPRO40 / TRLPRO40L |
| Fuel Type | Natural Gas, Propane |

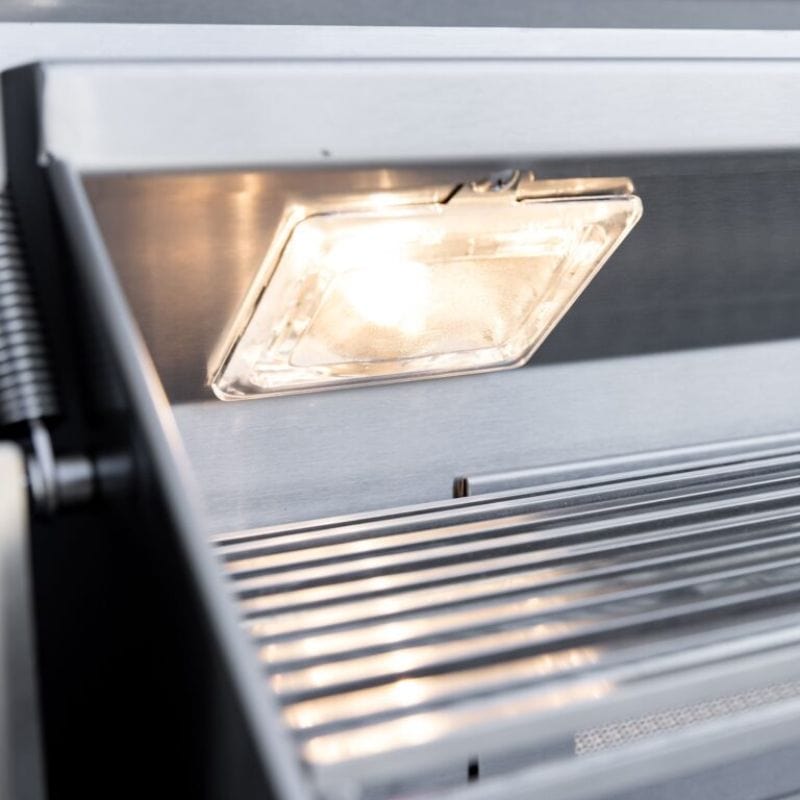

| Interior Lighting | Halogen Cooking Lights |
| Exterior Lighting | LED Pin Lighting + White to Red Bezel Lighting Indicating ON/OFF Burner State |
| Ignition Features | Flame Thrower & Manual Flash Tube Ignition |
| Main Burner BTUs | 20,000 BTUs (each burner) |
| Back Burner BTUs | 15,000 BTU Infrared Back Burner |
| Temperature Gauge | Built-in Temperature Gauge |
| Finish | #304 Stainless Steel Construction |

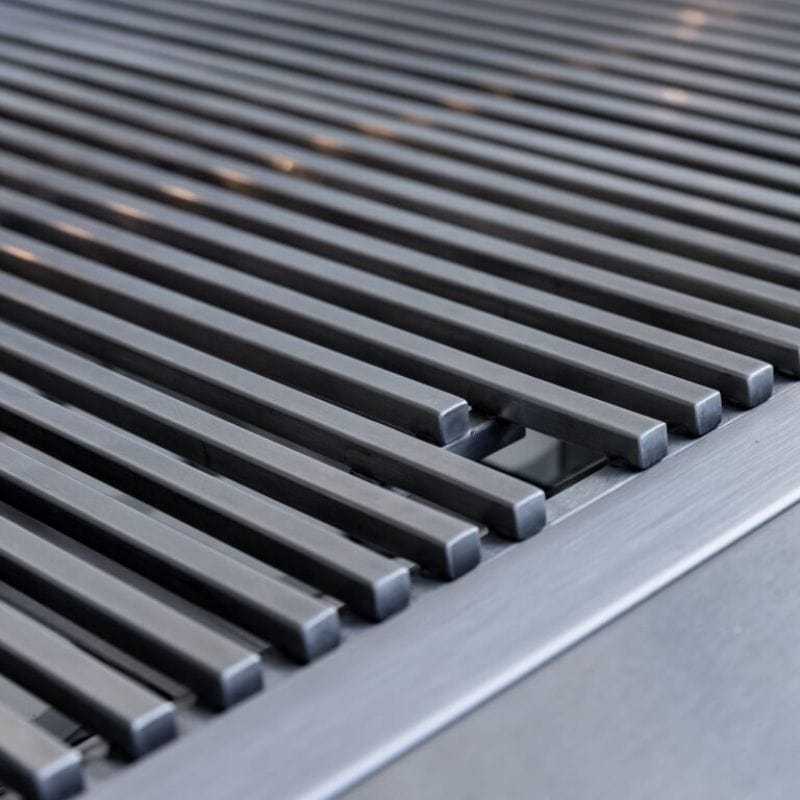

| Grate Thickness | 8mm Square Cooking Grates |
| Burner Covers | Easy-Clean Briquette System |
| Drip Tray | Full Length Drip Tray |
| Hood Features | Double-Lined Spring Assisted Hood |
| Burner Type | Cast Stainless Burner |
| Total Cooking Surface | 876.61 Sq. Inches – Including Warming Rack |
| Cutout (width × depth × height) | 38-1/2 in. W × 20-3/4 in. D × 9-3/8 in. H |
| Overall dimensions (width × depth × height) | 39-7/8 in. W × 25-1/2 in. D × 22-3/8 in. H |
| Installation planning | Use the exact-model drawing and full manual before cutting the island. Insulating-liner openings and clearances are separate. |
| Gas options | Natural gas or propane |
| Body | 304 stainless steel |
Manufacturer Documents
Official documents from Summerset. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
