OpenView - Masonry & Prefab Fireplace Doors

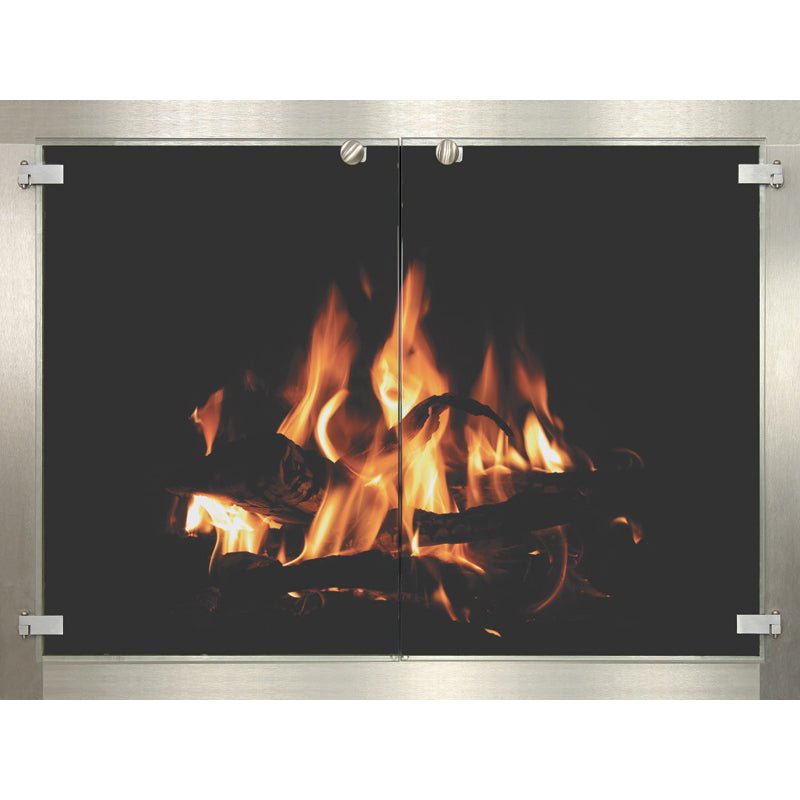

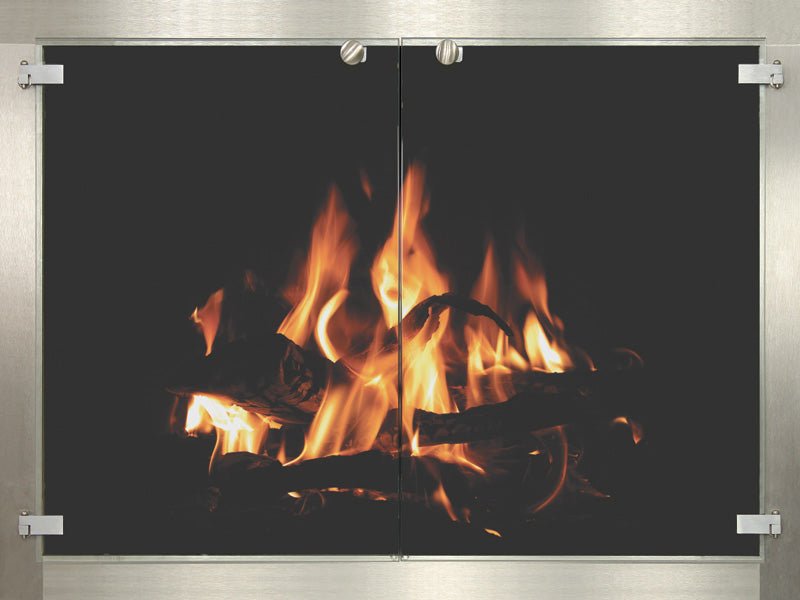

TotalView Glass Doors – Custom Sizes

These frameless glass doors offer a sleek, elegant look while maximizing viewing space. Choose from a variety of steel frames, including Original, Original Iron, and Bar Iron.

Key Features:

• Max Overlap: 2” Frame Custom
• Original: 14-gauge steel, 2” overlap per side
• Original Iron: 11-gauge steel, 2” overlap per side
• Bar Iron: 7-gauge steel, 1” overlap per side, 1 ½” top and bottom

Frame Specifications:

• Material:
  • Original: 14-gauge formed steel
  • Original Iron: 11-gauge formed steel
  • Bar Iron: 7-gauge steel bar stock
• Panel Width: 2” (customizable)
• Frame Depth:
  • Original: ¾” (customizable)
  • Original Iron: 1” (customizable)
  • Bar Iron: 3/16” (customizable)

Important Notes:

• Bar Iron frames cannot overlap the full panel width; check overlap in the chart.
• Frame panels can be adjusted on all 4 sides without affecting the price (based on finished size).
• Corner doors are priced as two separate doors. If a door is less than 20” wide, a 20% discount applies.
• Inside-fit doors are sized 1/8” less than the opening on each side unless specified otherwise.
• For Zero Clearance (ZC) applications, 1/4” spacers or air slots will be added for airflow.
• For hole-in-the-wall installations, hearth flanges or z-tabs can support the frame on the fireplace floor.

Common Add-Ons:

• Return to increase frame depth: $130
• Custom cutouts (e.g., gas line holes): $130
• Arch top (Bar Iron only): $260
• Riser bar: $130
• Gas log heat shield: $65
• Etched glass (rectangle, cabinet only): $510
• Antique glass (rectangle only): $750
• Integrated hood: $195

Custom Made | Ships Within: 3-4 Weeks

Made in USA - South Carolina

5 Years Warranty
