Cabot

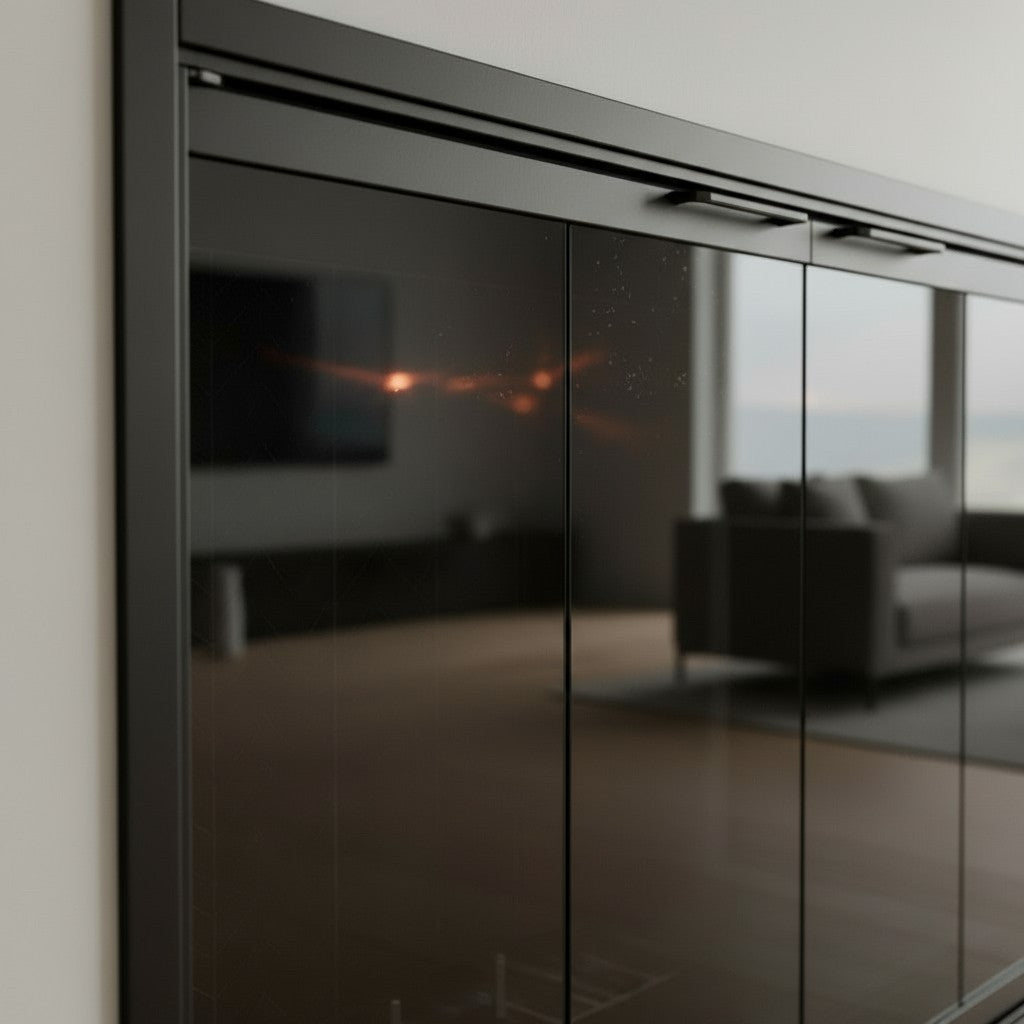

Steel Masonry Fireplace Glass Doors · Custom
4.4 · 17 reviews
Give your fireplace a look you love. Choose the finish and details that bring your room together.
Made to order · production: 2–3 weeks
Build your doorConfigurator · Step-by-Step
Configure Your Door
Your Fireplace
Choose your fireplace type to find the right door options.
Every order is reviewed by a fireplace expert before production.
Masonry is built from brick or stone with a chimney. Prefab (factory-built) is a metal firebox, often with a brand name stamped inside.
Your Measurements
Enter the inside width and height of your fireplace opening.
Your Arch Opening Measurements
Center peak height drives pricing.
Focus a measurement to highlight it. Your template confirms the arch curve.
Use a tape measure to find the smallest opening dimensions, then enter your actual readings in the width and height fields.
- Find the narrowest width. Start at the top, middle and bottom, then check between them and at every projecting brick or stone.
- Enter the smallest width you find in the Width field. Keep the tape level; do not subtract an allowance.
- Find the lowest height across the opening, checking left, center, right and between. Use the top measuring point explained below.
Where to measure at the top
Look up just inside the top edge. A lintel bar is the steel support above a masonry fireplace opening. It can be hidden behind brick, stone or trim.
Confirm the recessed depth for your selected frame and mounting with our team.
Measure to the top of the opening.
Measure to the bottom of the bar.
Not sure which applies? Keep your opening height and, if you can see the bar, note the height to its underside and its distance back from the front. Add these in the order notes so our team can confirm the measuring point for your frame.
- Find the narrowest width of the front metal opening. Check top, middle, bottom and any tighter points between them.
- Enter the smallest width you find in the Width field. Keep the tape level; do not subtract an allowance.
- Find the lowest height from the bottom to the top of the front metal opening. Check left, center, right and between; enter the smallest height.
Trim and louvers
Do not include the trim flange around the frame. Louvers above and below on some models — measure the metal opening either way.
Metal box: Factory-built. Brick and firebrick: Masonry.
Smallest width anywhere in the opening
Narrowest point, base to base
Floor to where arch starts curving
Smallest height across the opening
Floor to highest point (peak)
Please double-check both measurements and include any fractions of an inch.
Confirm your arch with a free template kit
Three measurements give us the size. A paper template captures the arch curve.
- 1. RequestAdd your delivery address.
- 2. TraceFollow the kit instructions.
- 3. ReturnWe review the arch shape with you.
You can request a kit before measuring. Our team will confirm shipping details.
Two ways to get the size rightGet the size right
For our Perfect Fit Guarantee, complete the required video measurement check and submit a photo of the opening with the existing doors removed before production. What the Perfect Fit Guarantee covers
Door Style
Choose the fit, door style and handles for your fireplace.
Overlap covers gaps. Inside sits flush against the frame.
- Overlap fit — the frame sits on the face of the opening and covers its edge on all four sides.
- Overlap fit — the frame sits on the face of the opening and covers its edge at the top and both sides; the bottom rests on your hearth.
- Inside fit — the door sits inside the opening. Have the opening and its diagonals checked before choosing this fit.
How it opens.
Handle finish automatically matches the frame color you select in Step 4.
Frame Finish
Find a finish that complements your room. Select a color to preview it.
Order finish samples $10 each · shipped free
Each sample earns its price back as a credit on your door — up to $50.
Glass & mesh
Choose the glass tint you prefer.
Mesh helps contain sparks while you enjoy the fire.
Review & Order
Review your selections, then add your custom door to the cart.
Help us confirm the fit
Full fireplace photo
RequiredShow the full opening, all four edges and the hearth.
or drag a photo here
Full fireplace first · Up to 3 photos totalUse your phone
Scan with your phone camera. Your photos appear here.
Add a full fireplace photo before adding your door to the cart.
Add measurement photosOptional
Smallest width
Show the tape across the narrowest part of the opening, with both ends and numbers readable.
Smallest height
Show the tape vertically at the shortest part of the opening, with both ends and numbers readable.
Natural light, fire off · Up to 10MB per photo.
Your photo helps our team review the fit.
Hearth Bundle: every piece added with your door is 10% off at checkout, automatically.
Our fireplace team reviews your order before production.
Free shipping included
Made to order: final sale and non-returnable. Cancel within 48 hours. Refund policy →
Your design, saved
Pick it up anytime, anywhere
This link opens the configurator exactly where you left it — every size and option restored. Send it to yourself, your spouse, or your contractor.
Or e-mail it to yourself
Also auto-saved on this device — come back and we’ll offer to resume.
Talk to a fireplace expert
Get help with fit, measurements or your order.
Help from NFI-certified specialists
Shipping & warranty
Production time2–3 weeks
ExceptionalFire coverage: 5 years workmanship · 2 years finish and hardware · 1 year glass. Longer applicable manufacturer coverage also applies.
The details
Product details
Overview
Product details and key features

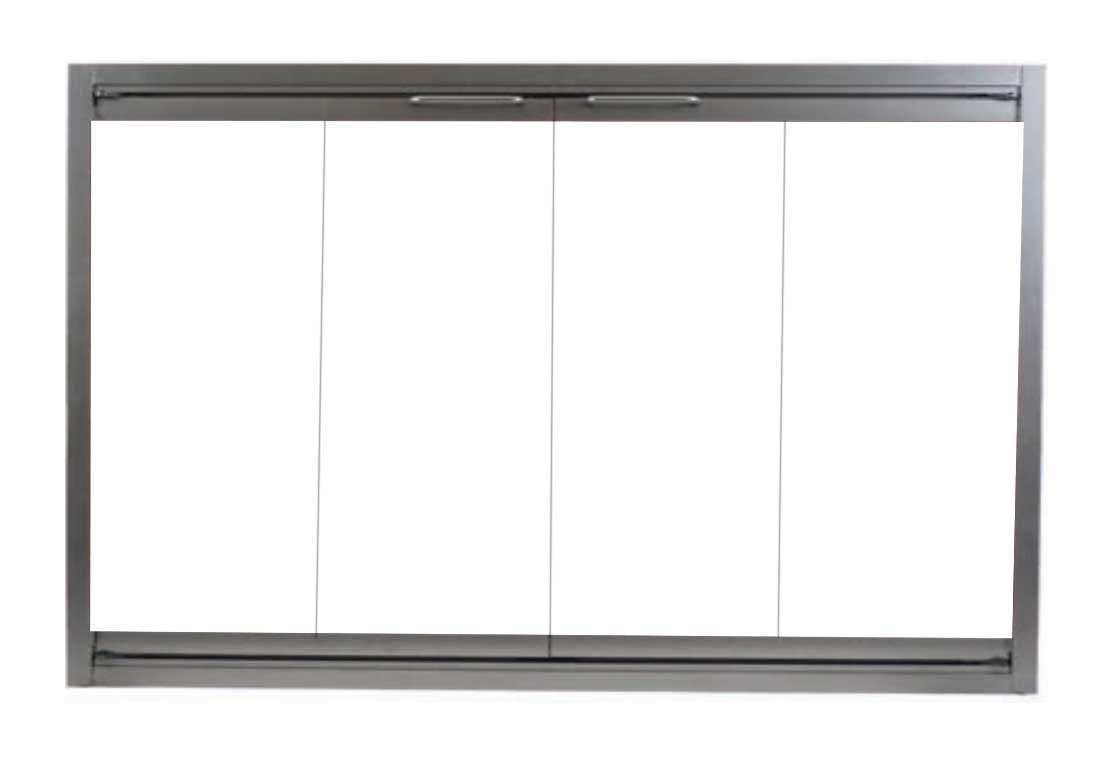

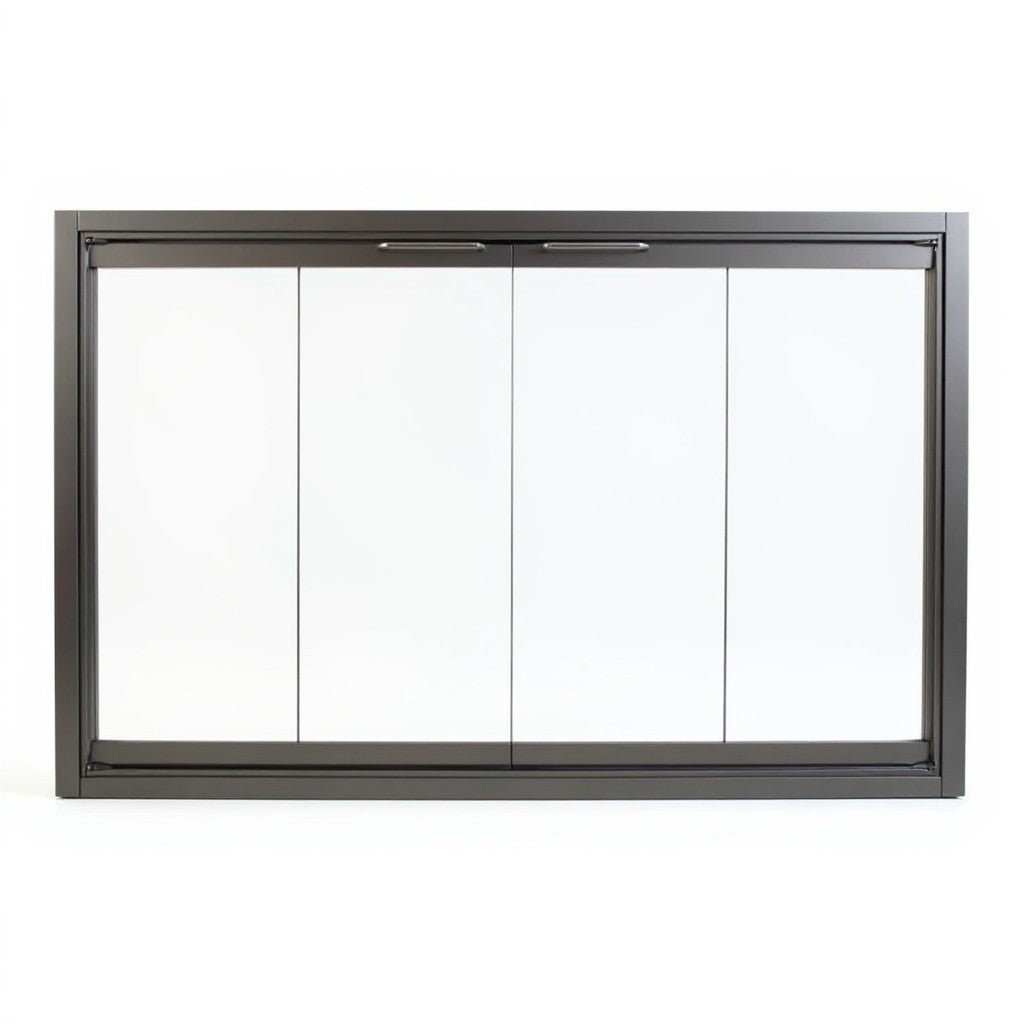

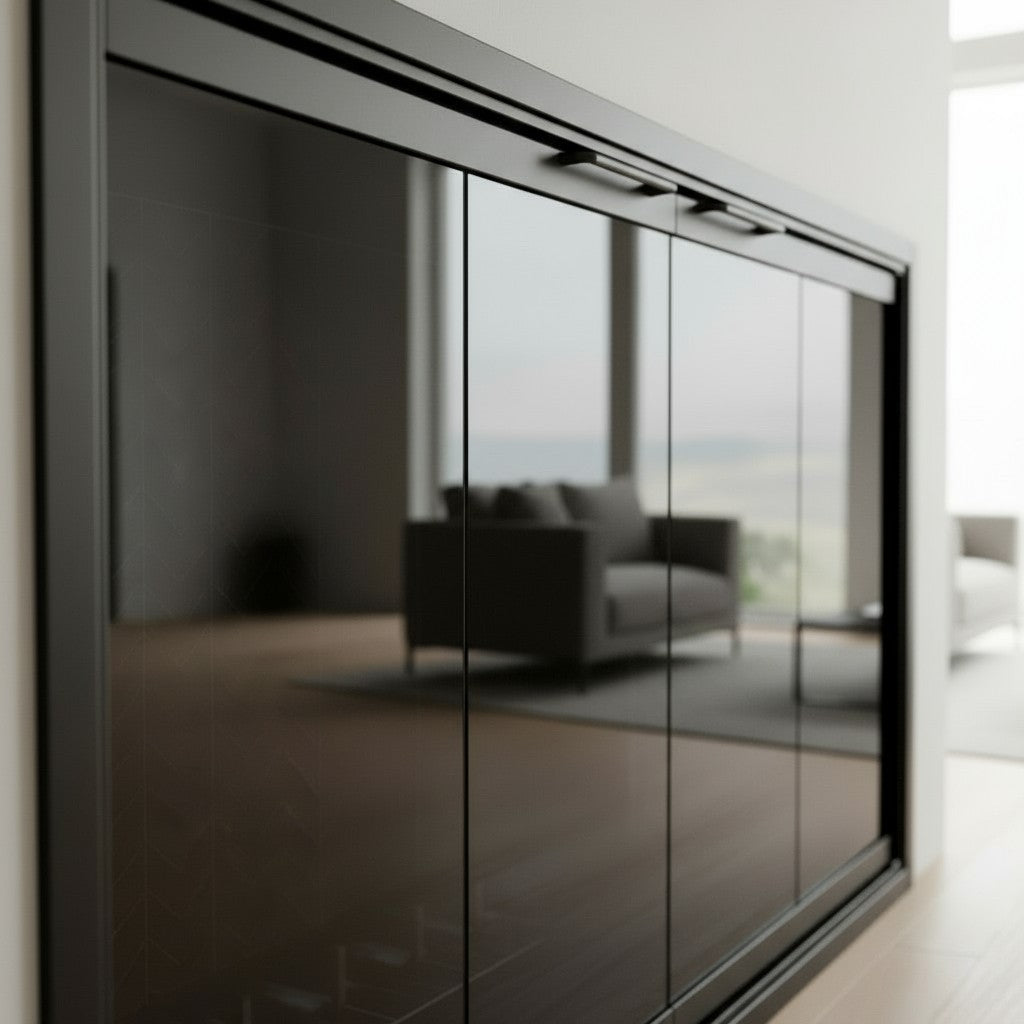

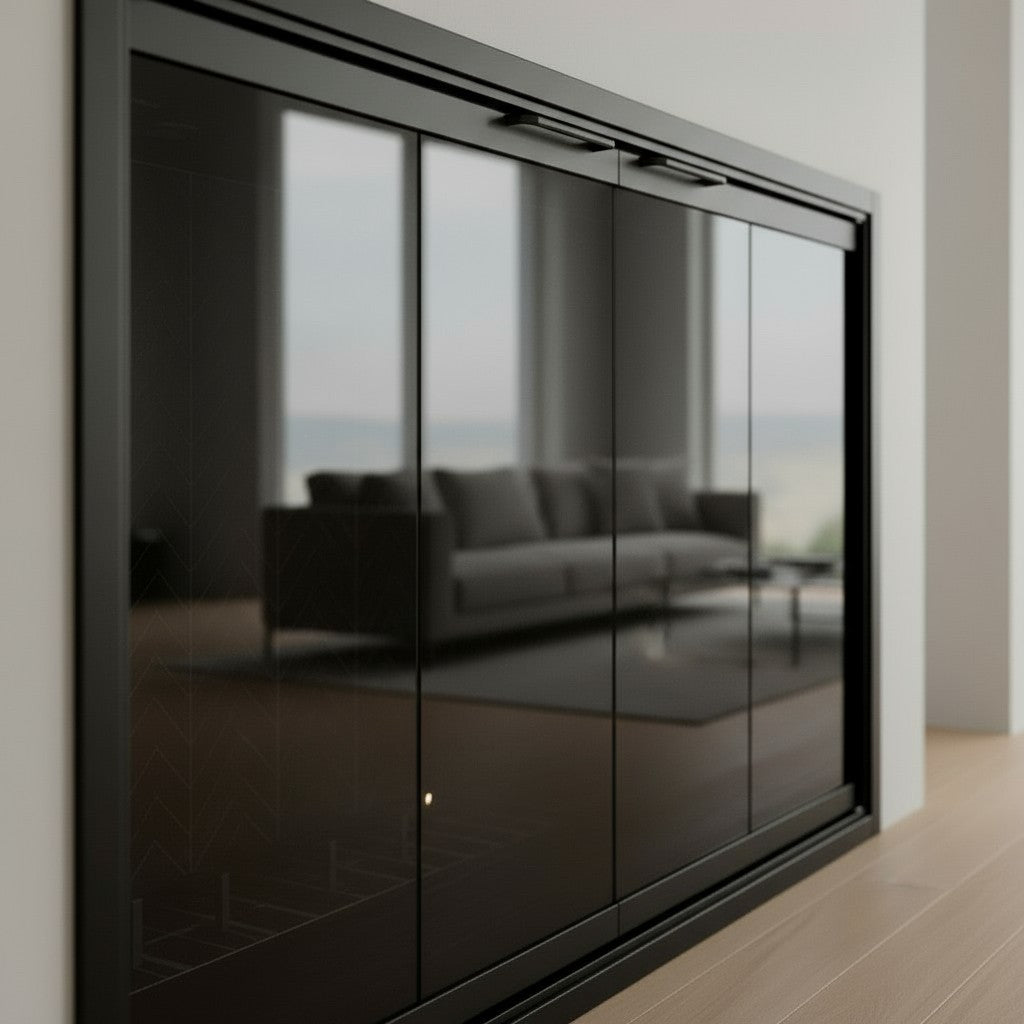

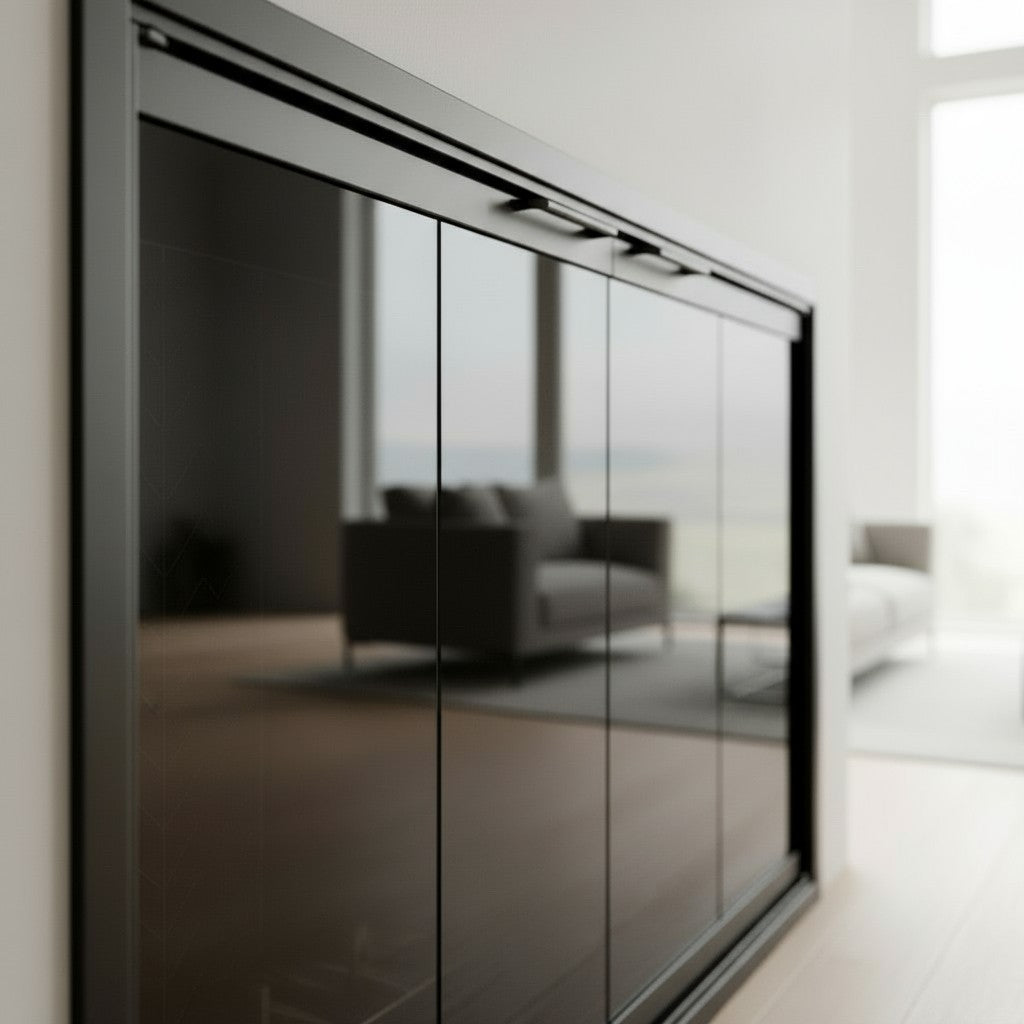

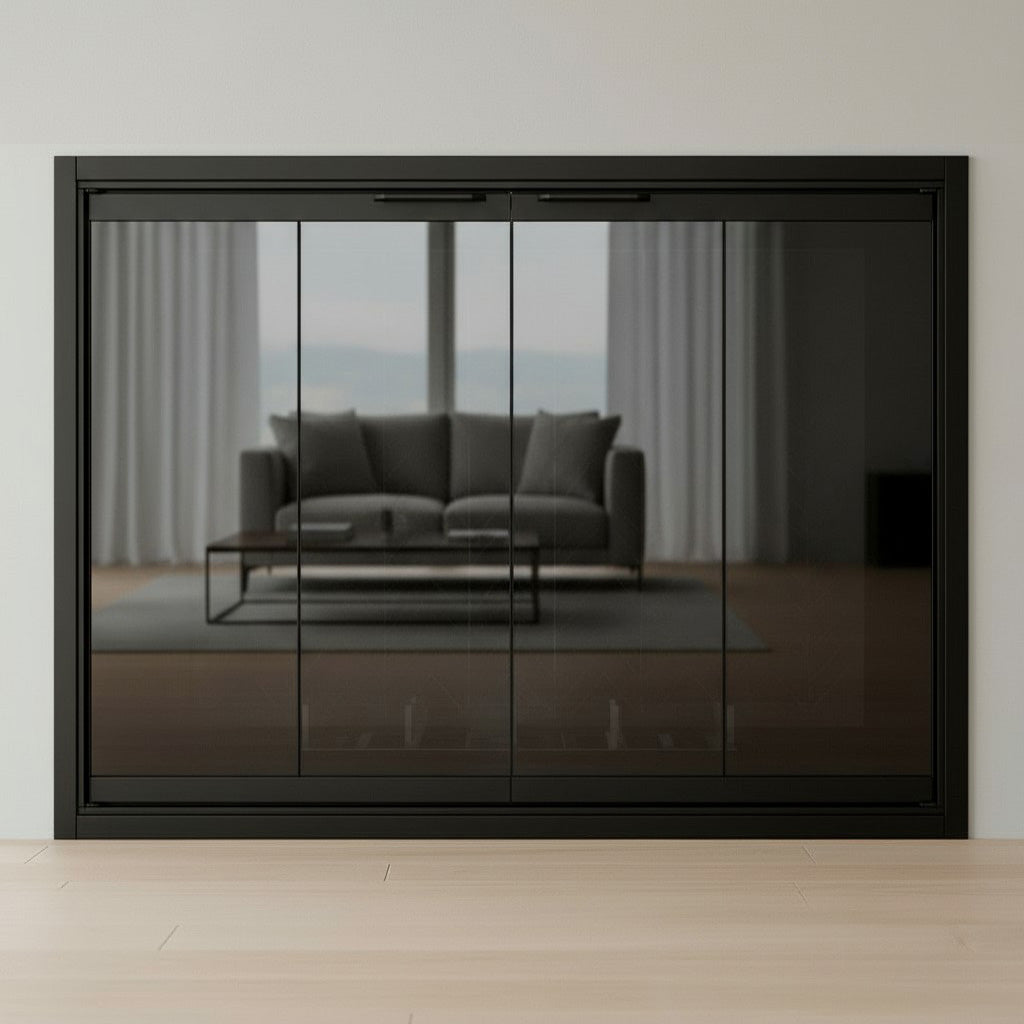

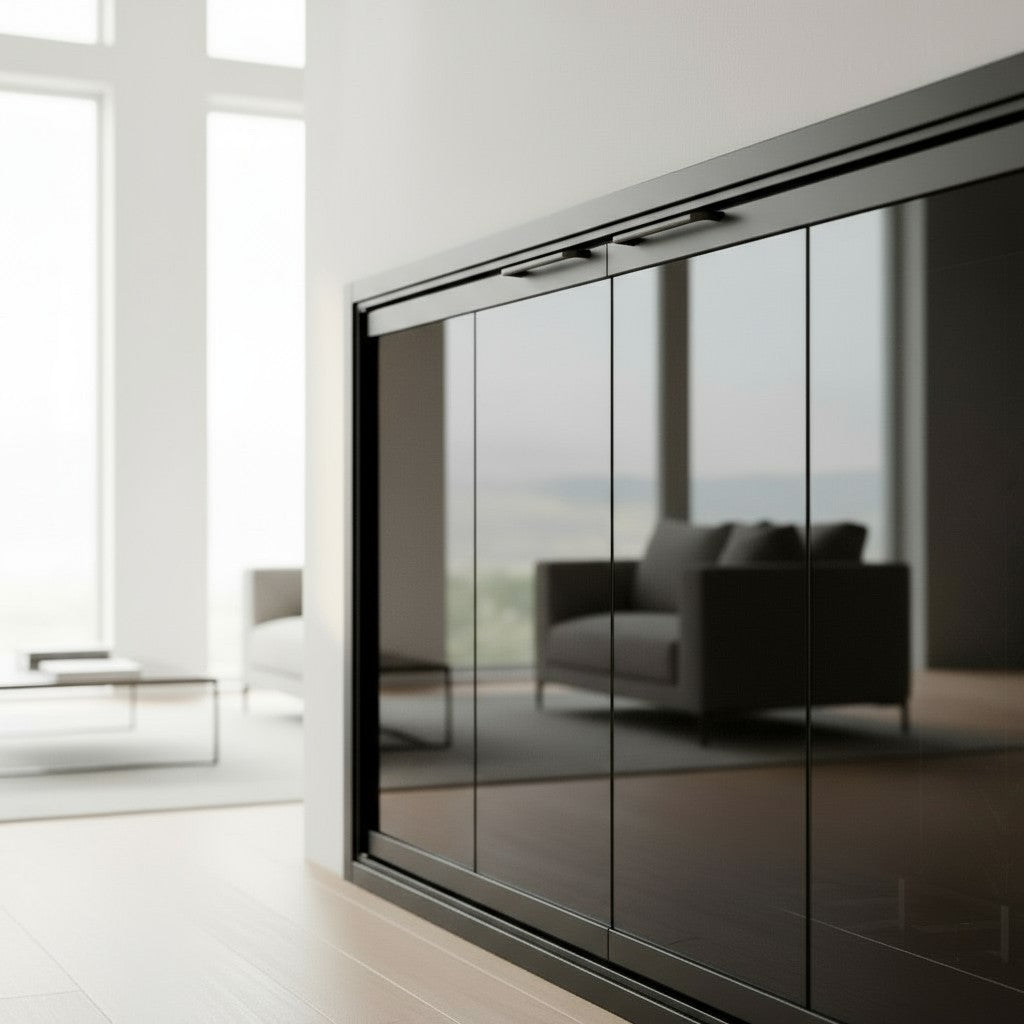

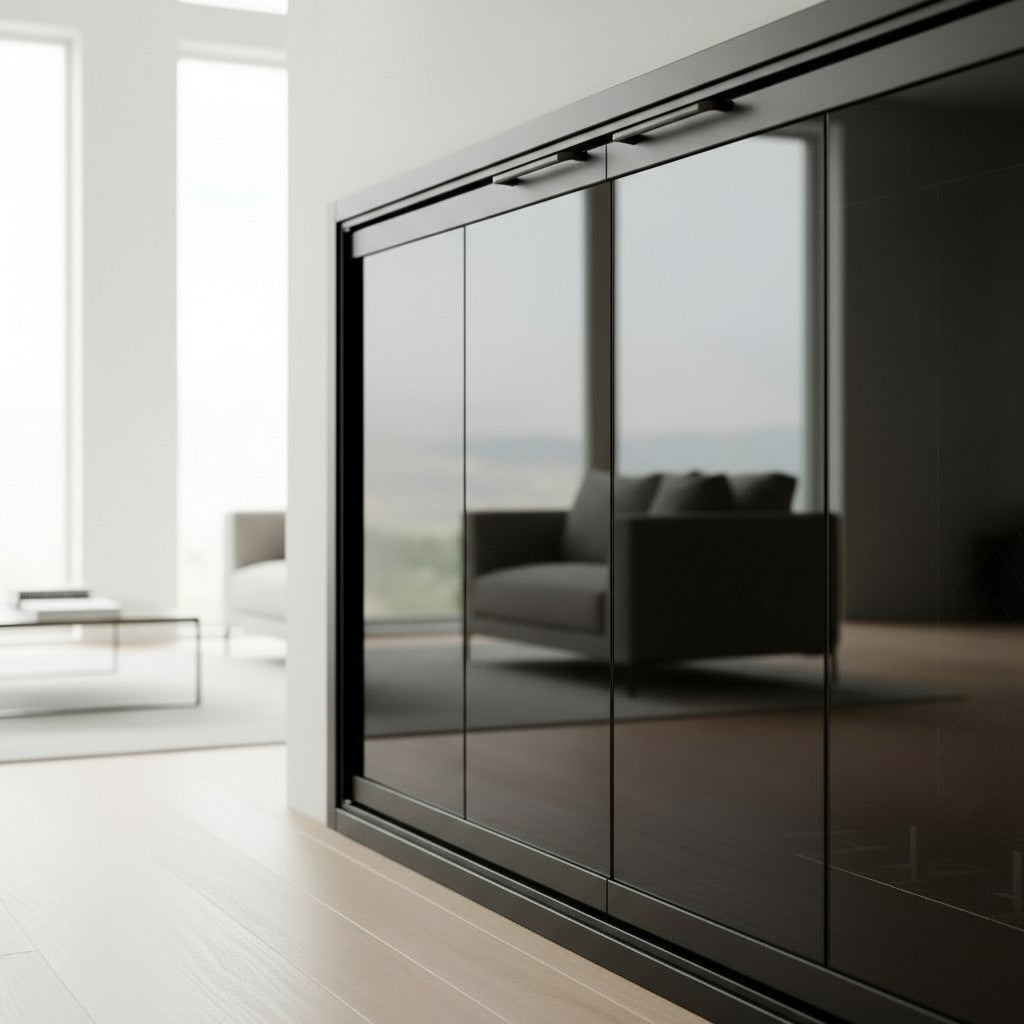

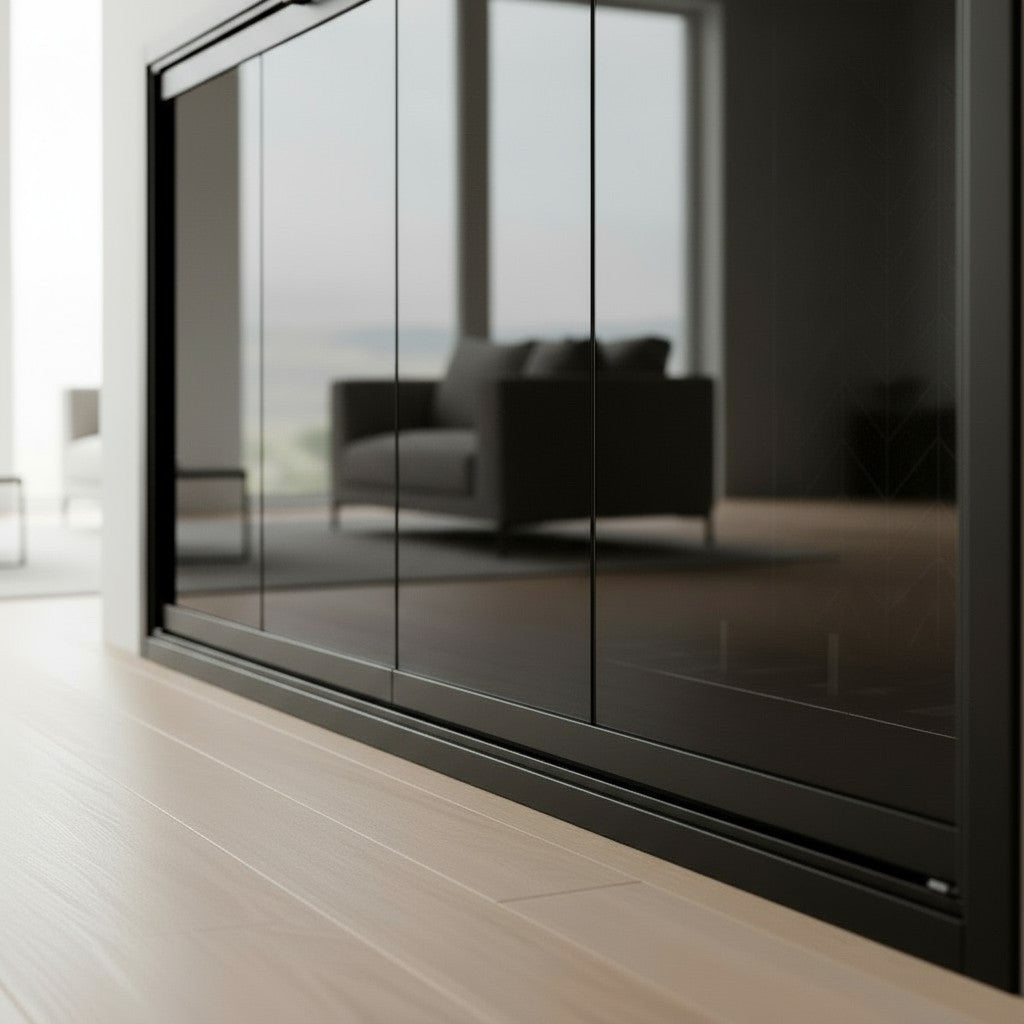

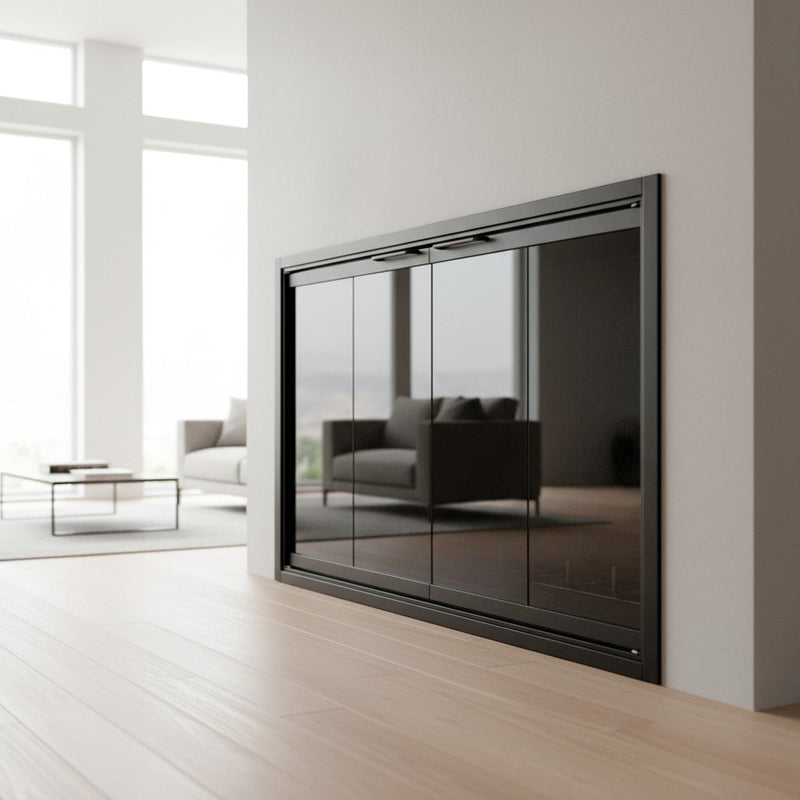

Make your masonry fireplace feel at home in the room with Cabot glass doors. Choose an aluminum frame finish that complements the surround, then select the size and door details for your hearth.
Design details
- Aluminum frame
- Help with fitfrom our fireplace team
Specifications
Frame dimensions, fit and materials
| Specification | Cabot |
|---|---|
| Frame Widthwidth of the visible frame band | 1" |
| Std Overlapstandard coverage of the opening edge | N/A |
| Max Overlapmaximum coverage of the opening edge for this frame | N/A |
| Frame Depthprojection from the fireplace face into the room | 11/16" |
| Recessed Depthportion extending into the opening with overlap installation | 3/8" |
Installation
Brackets, clearances, step by step
Cabot Installation
Cabot uses a 7/8" overlap mount — 3 simple steps. Confirm your fireplace opening is square before starting; the narrow overlap won’t hide chipped brick or wavy mortar.
Need help? Email info@exceptionalfire.com with photos of your fireplace + opening dimensions before installation. We’ll confirm the right hardware and walk you through any tricky step.
Tap any diagram to enlarge it.
How to measure
Opening dimensions and measuring guidance
- Measure the opening. Measure the width at the top and bottom, then the height on the left and right. Record each measurement to the nearest 1/8 inch.
- Keep the smaller width and height. Enter the opening measurements in the configurator. The selected model’s fitting instructions determine the finished frame size.
- Note the details. Include a photo showing the hearth, lintel and surrounding trim. For a factory-built fireplace, also photograph the make and model label. For an arch, record the width, side height and center peak height.
Shipping & returns
Production: 2–3 weeks
Made-to-order products are final sale. Please review the shipping and returns policies below before ordering, including how to report a delivery issue.
Warranty
5 years workmanship · 2 years finish and hardware · 1 year glass
ExceptionalFire warranty: 5 years workmanship · 2 years finish and hardware · 1 year glass. Covers qualifying manufacturing defects for the original residential purchaser from delivery. Longer applicable manufacturer coverage also applies.
For help with a claim, email info@exceptionalfire.com with your order number, a description of the issue and photos. Full coverage, exclusions and claim terms.

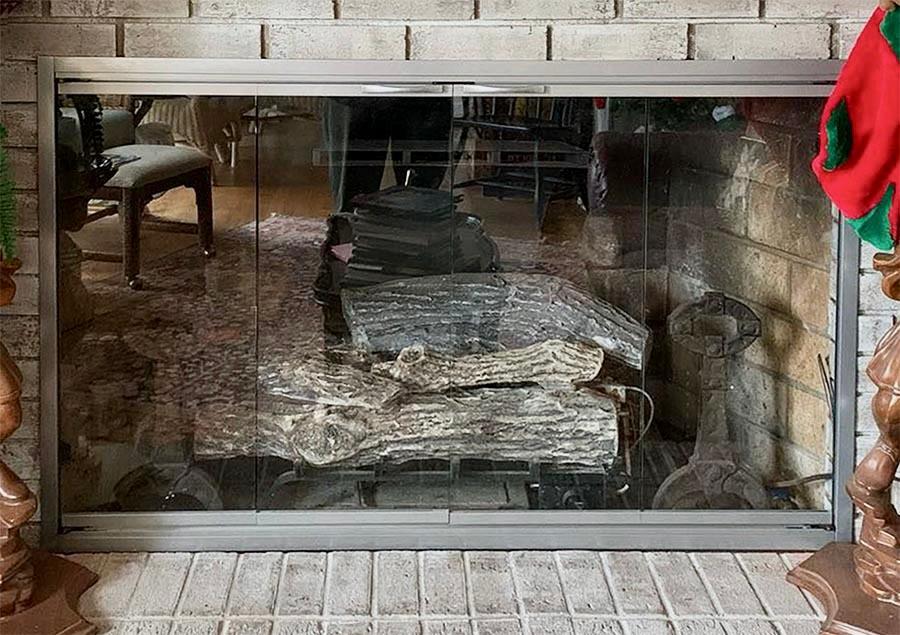

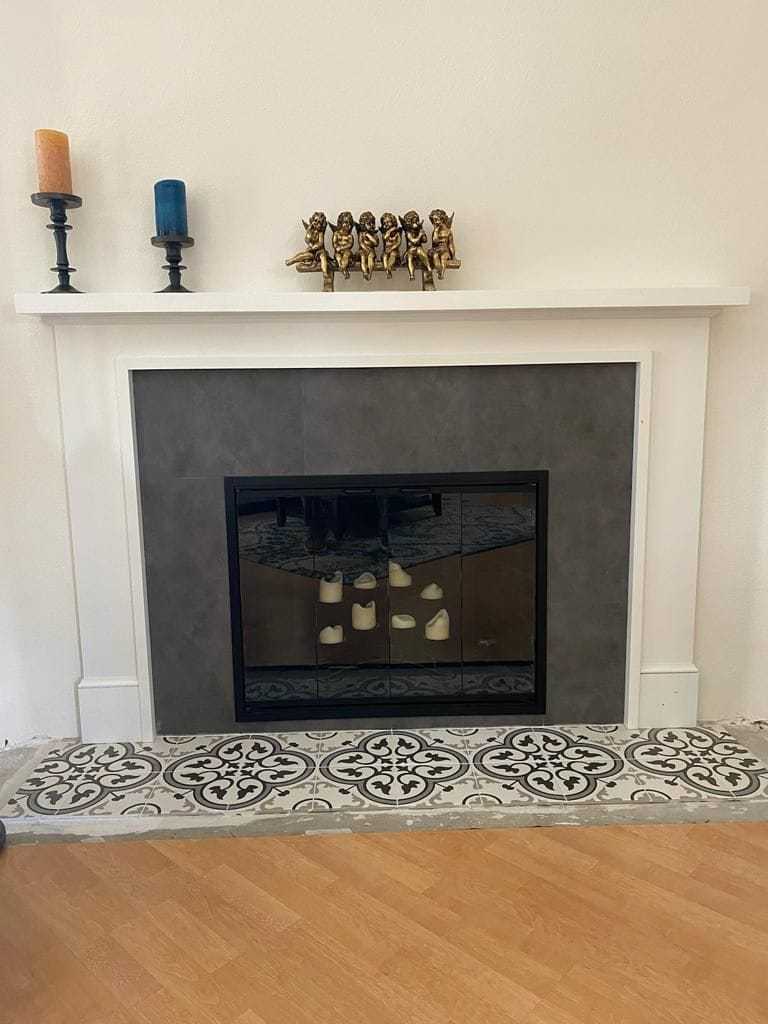

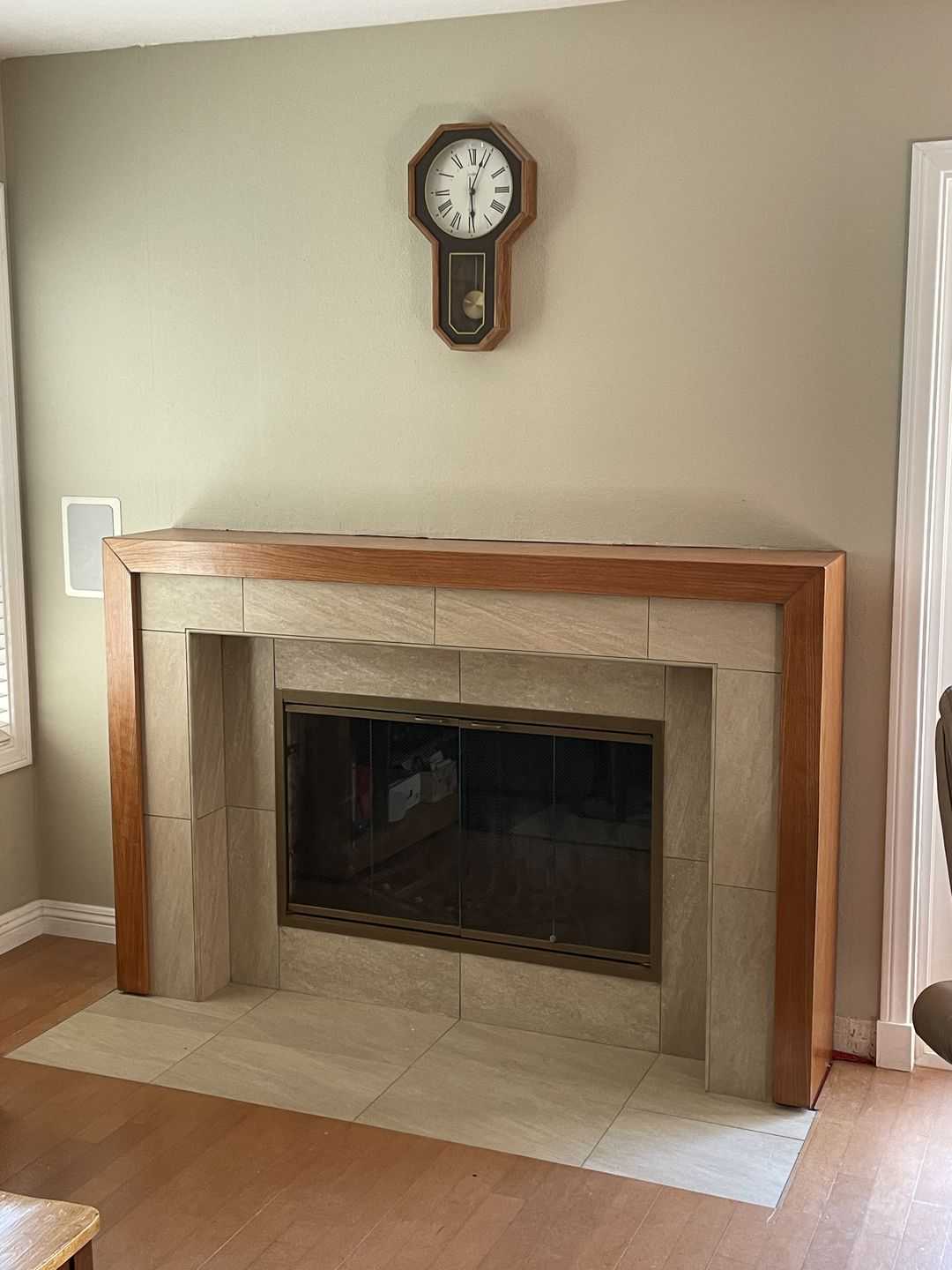

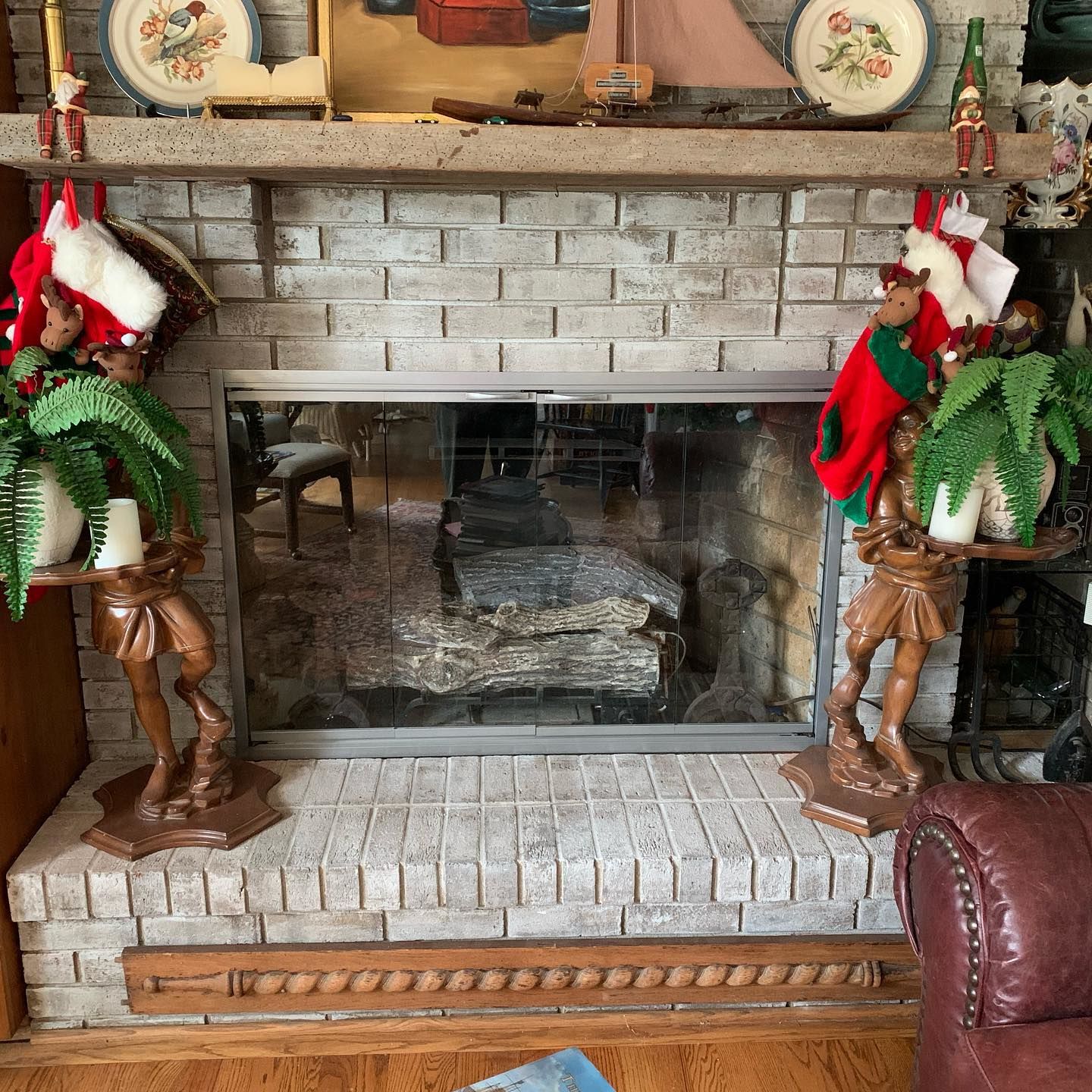

In real homes
Customer reviews
4.4 average from 17 reviews on this product. Customer reviews collected through Loox.
Not this one? Five more that fit.
Finishing touches
Gas logs, tool sets, log holders and grates — every piece 10% off with your door.
Gas logs our 30 most-chosen sets, one per style — sized to your opening on the review step
Grand Canyon Gas Logs · gas type and ignition to choose.
From $577
Choose options →
Formation Creation · gas type and ignition to choose.
From $569.99
Choose options →
Real Fyre · gas type and ignition to choose.
From $869.40
Choose options →
Real Fyre · gas type and ignition to choose.
From $1,026
Choose options →Tool sets, log holders and grates one card per piece — pick the model, the size or the finish
Frequently Asked
How do I measure my fireplace for the Cabot?
Measure the opening, not the doors on it now. Take three width readings — top, middle, bottom — and three heights, then use the smallest of each. How to measure. To qualify for our Perfect Fit Guarantee, complete a live video measurement check and send a clear photo of the opening with the existing doors removed, both before production. See the policy for full terms.
Will the Cabot fit a prefab or zero-clearance firebox?
The Cabot is a masonry door, for a firebox of brick or stone. A prefab, zero-clearance metal firebox needs a different frame, so we build other models for those. Send a photo of your fireplace and we will tell you which ones fit yours.
Can I replace the doors that are on my fireplace now?
Yes. Take the old set off and measure the opening it was covering — an old frame rarely matches the opening behind it. Overlap sits on the face, hiding an uneven edge; inside fit sits in the opening and must be exact. The Cabot is built either way. Inside vs overlap fit.
Can I install the Cabot myself, or do I need a pro?
Follow the installation instructions for your fireplace and door model. Mounting depends on the opening and surround. Send a photo to our team if you would like help planning the installation.
Glass or mesh — can I burn a wood fire with the doors closed?
Follow the instructions for your fireplace and door model. Tempered-glass doors are generally kept open while a wood fire is burning, with the mesh screen closed. Ceramic glass alone does not authorize closed-door burning.
What sizes do you build, and is there a maximum width?
Custom-made to fit your opening. Enter its width and height, then choose your finish and door options. For a very wide opening, send us the measurements and we can help with a quote.
What is in the price, and what costs extra?
Select your size and preferred options on this page, then review the total before ordering.
