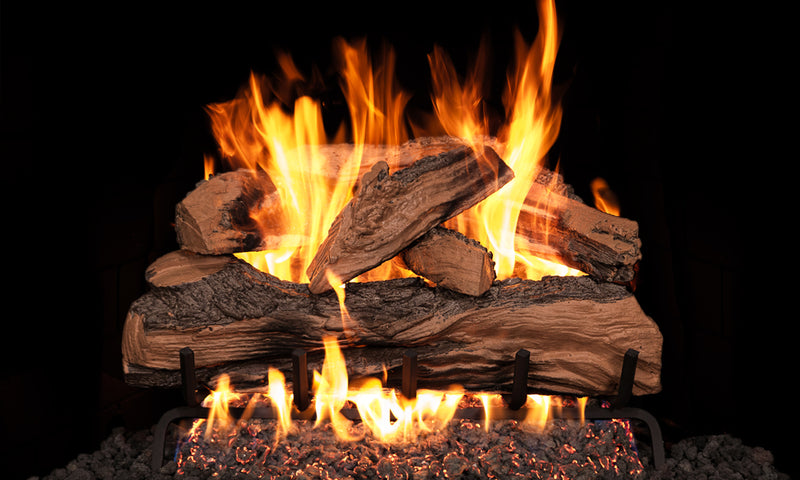

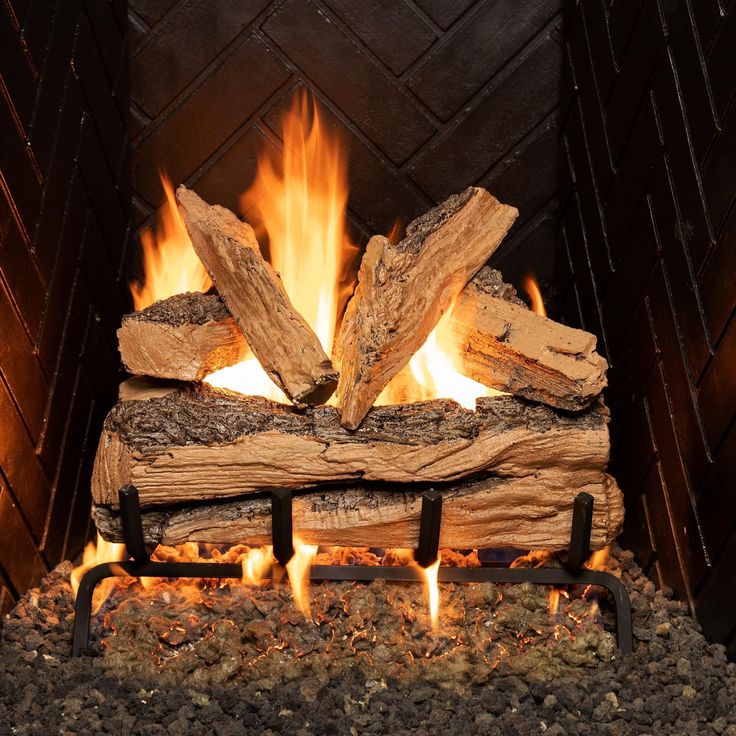

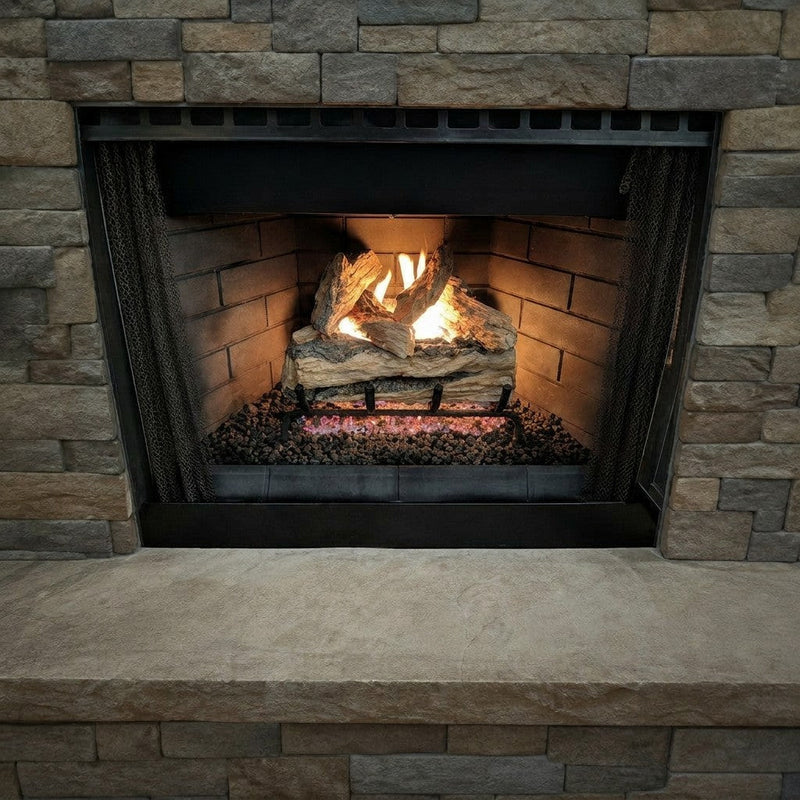

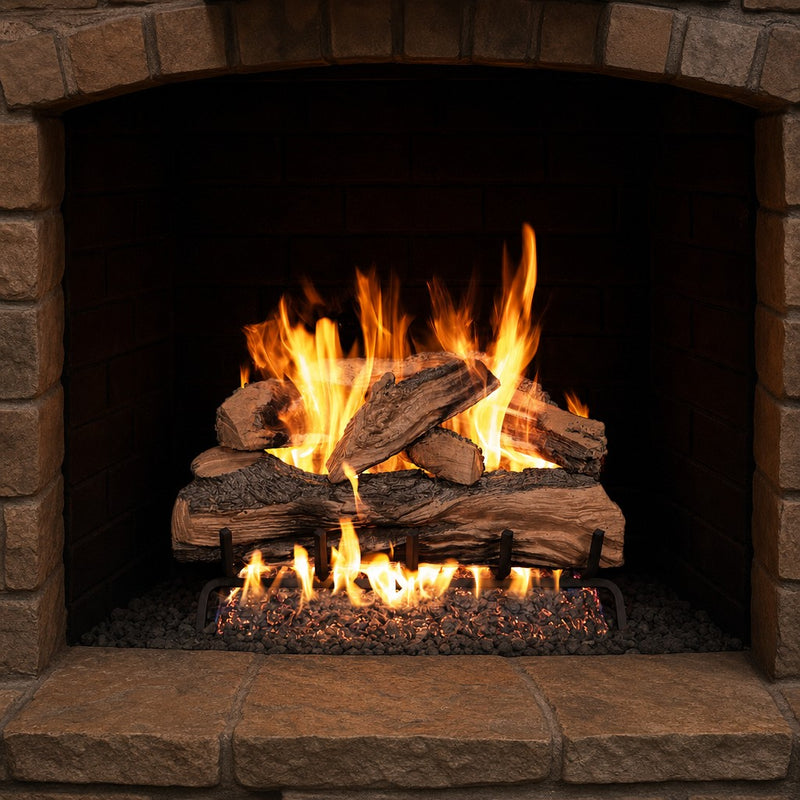

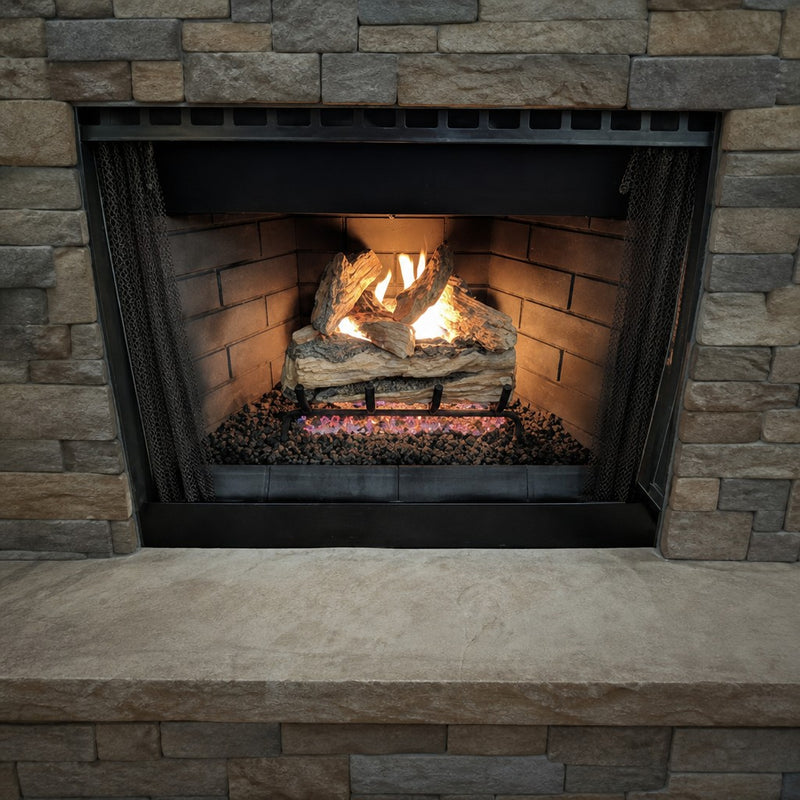

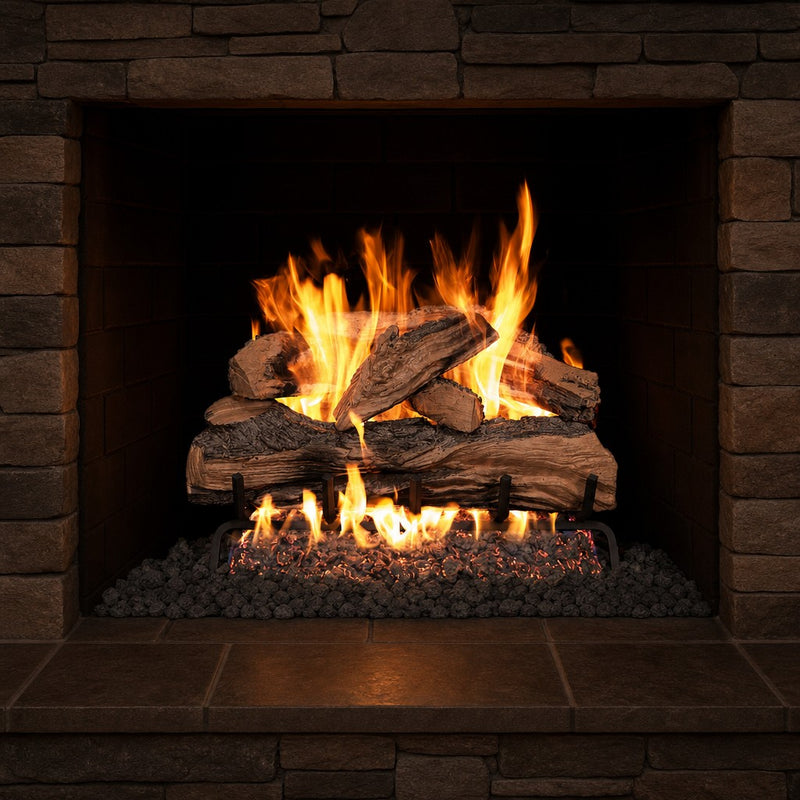

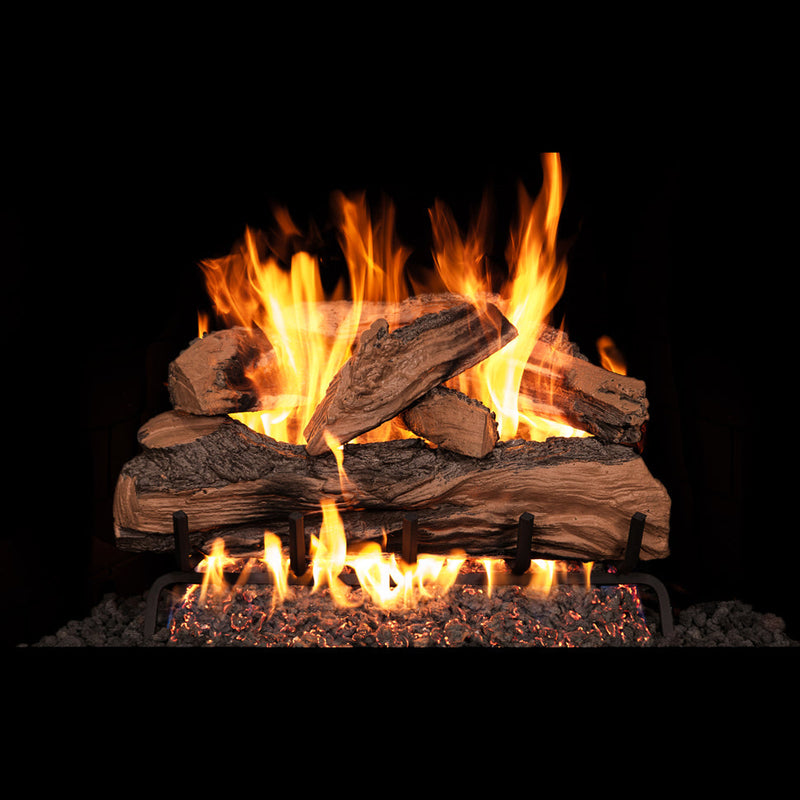

30" Split Oak Designer Plus ANSI Vented Gas Log Set

The Split Oak Designer Plus ANSI Vented Gas Log Set blends individually cast, hand-painted split logs modeled from real oak samples, creating a layered, freshly-split look with exposed heartwood and rugged bark. What sets it apart is the ANSI-certified G45 hearth kit, which arrives fully assembled with control valve and regulator for a safety-tested, ready-to-install fire. The result is a designer-grade flame with genuine peace of mind.

Why we carry it

We stock Real Fyre because Peterson has hand-painted ceramic refractory logs in the USA since 1949 and remains the most realistic name in the category. Every Designer Plus log is cast from a real wood sample, hand-finished, and steel-reinforced to survive decades of heat without warping or fading.

Specifications

• Material: hand-painted ceramic refractory with internal steel reinforcement
• Fuel: Natural Gas or Propane
• Vented: requires a working chimney/flue with an operable damper
• Ignition options: Match-Light, Manual Safety Pilot, or Electronic with variable-flame remote (included where available)
• Available sizes: 18, 20, 24, 30 and 36 in
• Made in the USA by Peterson Real Fyre
• Warranty: 10 years on indoor burners (controls excluded); see the manufacturer’s terms for logs and controls.

How to size & measure your fireplace

Record your firebox front width, rear width, depth, and height before ordering. Compare all four measurements with the minimum fireplace dimensions for the selected burner and controls. Because this is a vented set, your fireplace needs a functioning chimney and an operable damper.

What's in the box

• Hand-painted Split Oak Designer Plus ceramic logs
• ANSI-certified G45 burner with pre-assembled control valve and regulator, plus custom grate
• Glowing embers (vermiculite/silica sand)
• Damper clamp
• Connector kit and log locators
• Installation instructions

FAQ

What does ANSI-certified mean here? The burner system ships pre-assembled and safety-tested with its control valve and regulator, so installation is faster and simpler.

Vented vs ventless? This is vented, giving you a tall, realistic flame with the trade-off of needing an open chimney.

Which gas type? Both Natural Gas and Propane are available; select your fuel when ordering.

Can the gas line enter from the left? The kit connects on the right by default but accepts a left-hand inlet with a flex line.

Free shipping across the contiguous US. Ships in 4–10 days from our facility.

All shipments are insured and tracked. You'll receive a tracking number via email within 24 hours of dispatch.

Stock items may be returned within 10 days of purchase when unused and in their original packaging. A 10% restocking fee and return shipping apply. See our return policy for details and help with damaged or incorrect orders.

Real Fyre manufacturer warranty. Indoor refractory logs have lifetime coverage for the original owner; indoor fiber-ceramic blend logs have 5 years. Indoor burners are covered for 10 years, excluding controls.

Vented SPK-26 controls have 3 years and APK-17 controls have 2 years. Other valves, pilots and controls have 1 year, excluding batteries. Outdoor logs have 3 years and outdoor stainless-steel burners have 5 years.

Coverage requires proof of purchase, qualified installation and use under the manual’s conditions. Labor is excluded unless a separate written program applies. Read the vented warranty or vent-free warranty for the components you choose.
